ELECTRIC INSTRUMENTS PANEL

Assembly ID: A38840508

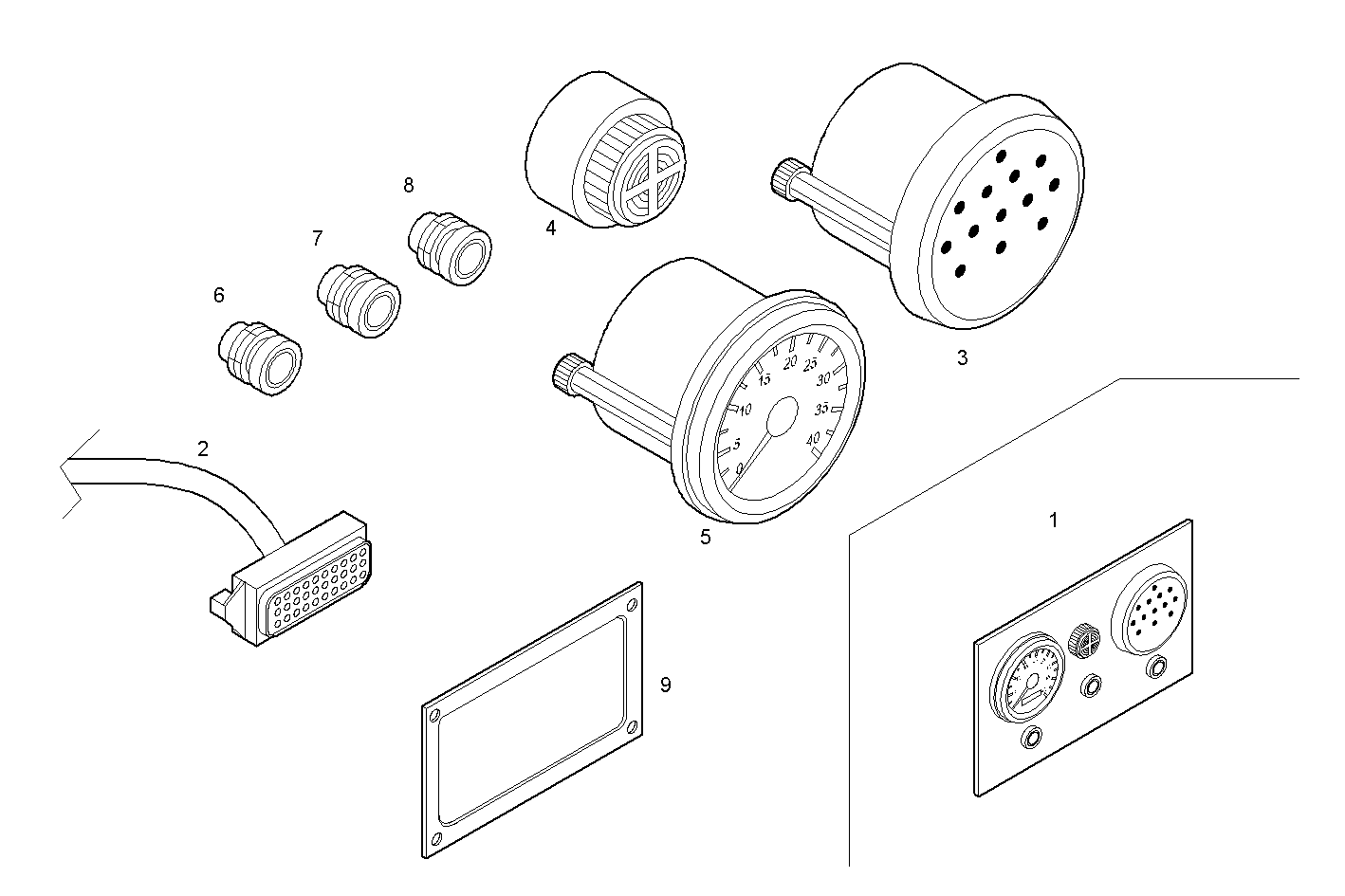

ELECTRIC INSTRUMENTS PANEL

Parts

# Part number Description Note Quantity
1 8037775 CONTROL BOARD ASSY 1
2 8035992 EXTENSION 1
3 8034892 WARNING LIGHT 1
4 8035166 ACOUSTIC HORN 1
5 8036197 REVOLUTION COUNTER 1
6 8036409 PUSH BUTTON 1
7 8036411 PUSH BUTTON 1
8 8036412 PUSH BUTTON 1
9 8044809 SEAL GASKET 1

Applies to engines

Engine Family
N67MNTM28.10 NEF 6 mechanic. view
N60ENTM37.10 NEF 6 electron. view
N45MNAM10.00 NEF 4 mechanic. view
N40ENTM25.10 NEF 4 electron. view
N67MNAM15.00 NEF 6 mechanic. view
N60ENTM40.10 NEF 6 electron. view
N67MNSM22.10 NEF 6 mechanic. view
N67MNAM12.30 NEF 6 mechanic. view
C13ENTM77.10 CURSOR 13 view
C78ENTM55.10 CURSOR 8 view
N67MNAM15.30 NEF 6 mechanic. view
C13ENTM50.10 CURSOR 13 view
N67MNTM28.30 NEF 6 mechanic. view
V08ENTM11.10D210 VECTOR 8 view
V08ENTM75.10A210 VECTOR 8 view
V08ENTM75.10B230 VECTOR 8 view
V08ENTM11.10C210 VECTOR 8 view
V08ENTM11.10P210 VECTOR 8 view
V08ENTM11.10R210 VECTOR 8 view
V08ENTM12.10A210 VECTOR 8 view
V08ENTM12.10B210 VECTOR 8 view
