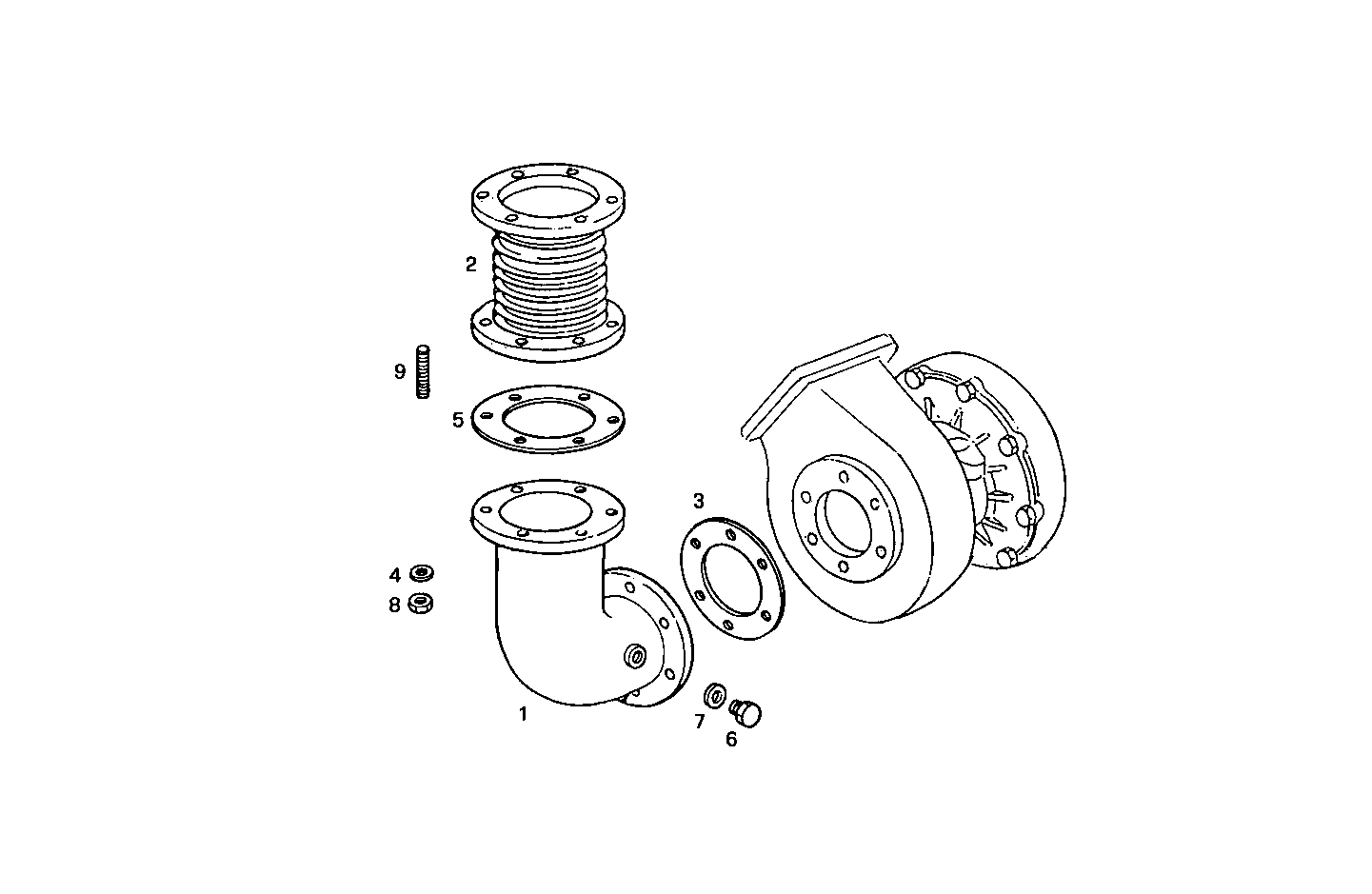

TURNING EXHAUST ELBOW WITH BELLOWS
Assembly ID: A40010019
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 8018463 | EXHAUST ELBOW | 1 | ||
| 2 | 8101671 | EXHAUST BELLOWS | 1 | ||
| 3 | 42075987 | GASKET | 1 | ||
| 4 | 17090174 | SPRING WASHER | 6 | ||
| 5 | 8009600 | GASKET | 2 | ||
| 6 | 16992211 | THREADED PLUG | 1 | ||
| 7 | 4858607 | WASHER | 1 | ||
| 8 | 17038221 | HEXAGON NUT | 6 | ||
| 9 | 13449524 | STUD | 12 |
Applies to engines
| Engine | Family | |
|---|---|---|
| 8210SRE21.00 | 8210SRE21 | view |
| 8210SRE20.00 | 8210SRE20 | view |
