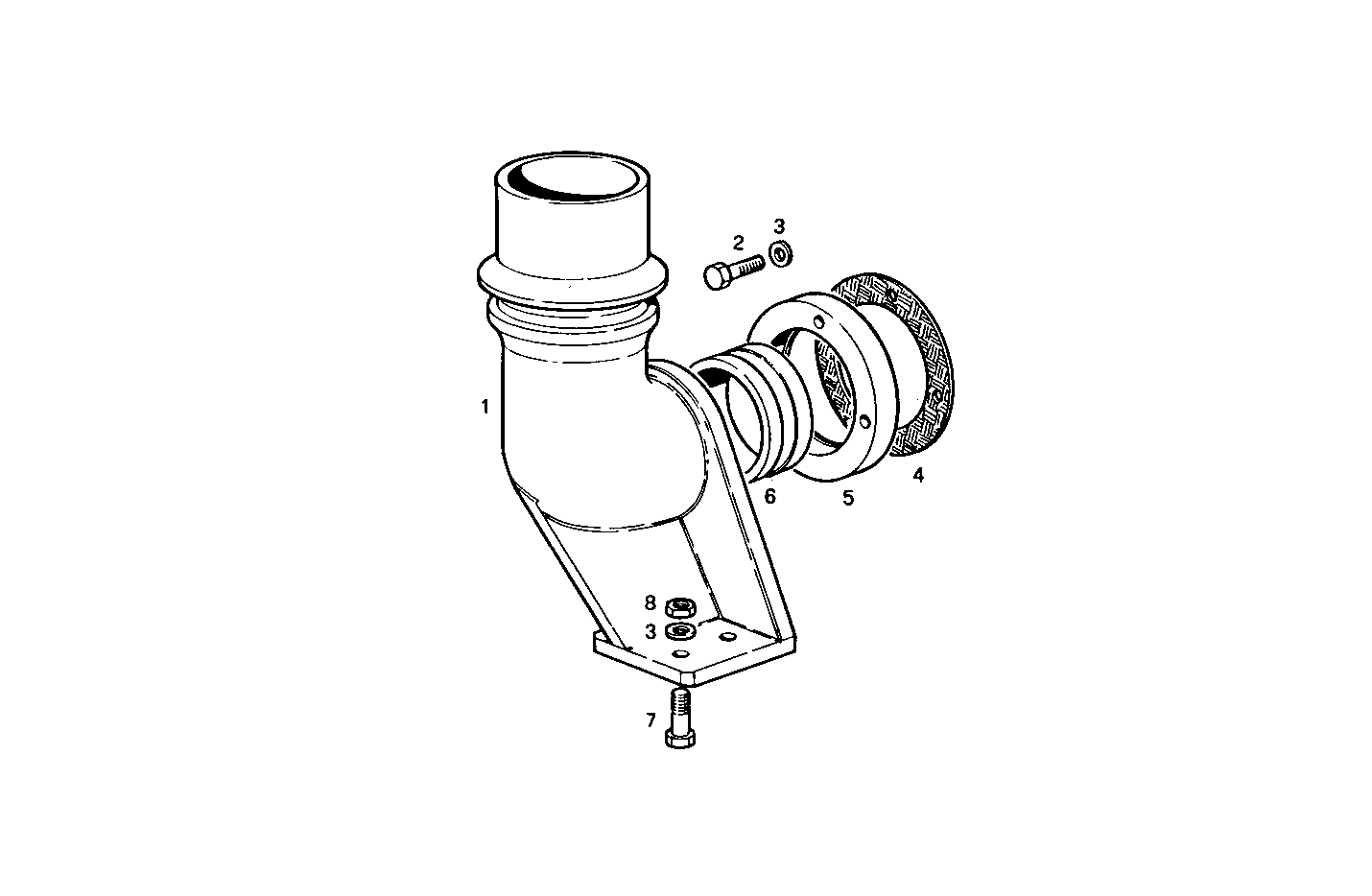

UPWARD FRONT EXHAUST ELBOW
Assembly ID: A40020002
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 4725095 | EXHAUST ELBOW | 1 | ||
| 2 | 11106321 | SCREW | 4 | ||
| 3 | 12638601 | WASHER | 7 | ||
| 4 | 4729026 | GASKET | 1 | ||
| 5 | 4754647 | SPACING BAR | 1 | ||
| 6 | 4724729 | SPRING LOCKWASHER | 1 | ||
| 7 | 15970931 | HEXAGON BOLT | 3 | ||
| 8 | 17038221 | HEXAGON NUT | 3 |
Applies to engines
| Engine | Family | |
|---|---|---|
| 8361SRi13.00 | 8361SRi13 | view |
| 8361SRi11.05 | 8361SRi11 | view |
| 8361SRi10.01 | 8361SRi10 | view |
| 8361SRE10.00 | 8361SRE10 | view |
| 8361SRi40.00 | 8361SRi40 | view |
