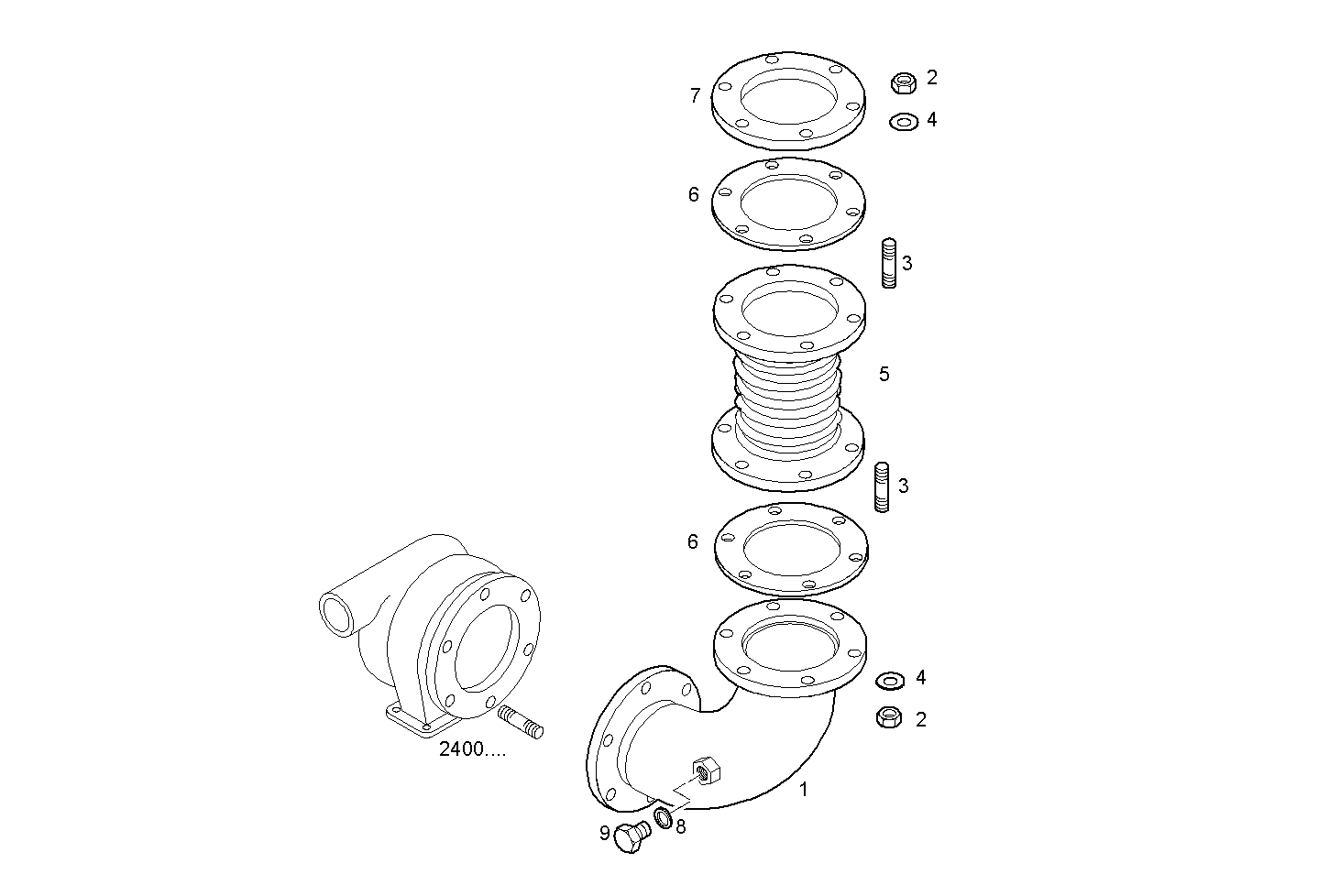

TURNING EXHAUST ELBOW WITH FLEXIBLE
Assembly ID: A40030508
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 8040933 | EXHAUST ELBOW | 1 | ||
| 2 | 17038131 | HEXAGON NUT | 12 | ||
| 3 | 16731234 | STUD | 12 | ||
| 4 | 17090174 | SPRING WASHER | 12 | ||
| 5 | 8016096 | EXHAUST BELLOWS | 1 | ||
| 6 | 8010072 | GASKET | 2 | ||
| 7 | 8022504 | FLANGE | 1 | ||
| 8 | 4858607 | WASHER | 1 | ||
| 9 | 16992211 | THREADED PLUG | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| GECURSOR400ES.R990 | GECURSOR 13 - 2002/88/CE | view |
| C13ENTE60.00 | CURSOR 13 - TIER 2 | view |
| GECURSOR400E.R990 | GECURSOR 13 - TIER 2 | view |
| CURSOR13TE3.A003 | CURSOR 13 - TIER 2 | view |
| C13ENTE61.00 | CURSOR 13 - TIER 2 | view |
| C13ENTE62.00 | CURSOR 13 - TIER 2 | view |
| GECURSOR300E.R990 | GECURSOR 13 - TIER 2 | view |
| GECURSOR350E.R990 | GECURSOR 13 - TIER 2 | view |
| CURSOR13TE1.A003 | CURSOR 13 - TIER 2 | view |
| C13ENTX61.00 | CURSOR 13 - TIER 3 | view |
| C13ENTX62.00 | CURSOR 13 - TIER 3 | view |
| CURSOR13TE1.A559 | CURSOR 13 - TIER 2 | view |
| GECURSOR300E.A551 | GECURSOR 13 - TIER 2 | view |
| GECURSOR300E.A71M | GECURSOR 13 - TIER 2 | view |
| CURSOR13TE2.A559 | CURSOR 13 - TIER 2 | view |
| GECURSOR350E.A551 | GECURSOR 13 - TIER 2 | view |
| GECURSOR350E.A71M | GECURSOR 13 - TIER 2 | view |
| CURSOR13TE3.A559 | CURSOR 13 - TIER 2 | view |
| GECURSOR400E.A551 | GECURSOR 13 - TIER 2 | view |
| GECURSOR400E.A71M | GECURSOR 13 - TIER 2 | view |
| GECURSOR350ES.A71M | GECURSOR 13 - 2002/88/CE | view |
| GECURSOR350ES.A551 | GECURSOR 13 - 2002/88/CE | view |
| CURSOR13TE2S.A559 | CURSOR 13 - 2002/88/CE | view |
| CURSOR13TE2S.A004 | CURSOR 13 - 2002/88/CE | view |
| CURSOR13TE2S.A003 | CURSOR 13 - 2002/88/CE | view |
| C13ENTA60.00 | CURSOR 13 - 2002/88/CE | view |
| CURSOR13TE3A.A003 | CURSOR 13 - 2002/88/CE | view |
| CURSOR13TE3A.A559 | CURSOR 13 - 2002/88/CE | view |
| GECURSOR400EA.A551 | GECURSOR 13 - 2002/88/CE | view |
| GECURSOR400EA.A71M | GECURSOR 13 - 2002/88/CE | view |
| GECURSOR400EA.R990 | GECURSOR 13 - 2002/88/CE | view |
| C13ENTA61.00 | CURSOR 13 - 2002/88/CE | view |
| CURSOR13TE2A.A003 | CURSOR 13 - 2002/88/CE | view |
| CURSOR13TE2A.A004 | CURSOR 13 - 2002/88/CE | view |
| CURSOR13TE2A.A559 | CURSOR 13 - 2002/88/CE | view |
| GECURSOR350EA.A551 | GECURSOR 13 - 2002/88/CE | view |
| GECURSOR350EA.A71M | GECURSOR 13 - 2002/88/CE | view |
| GECURSOR350EA.R990 | GECURSOR 13 - 2002/88/CE | view |
| CURSOR13TE2.A003 | CURSOR 13 - TIER 2 | view |
| CURSOR13TE3S.A003 | CURSOR 13 - 2002/88/CE | view |
| CURSOR13TE3S.A559 | CURSOR 13 - 2002/88/CE | view |
