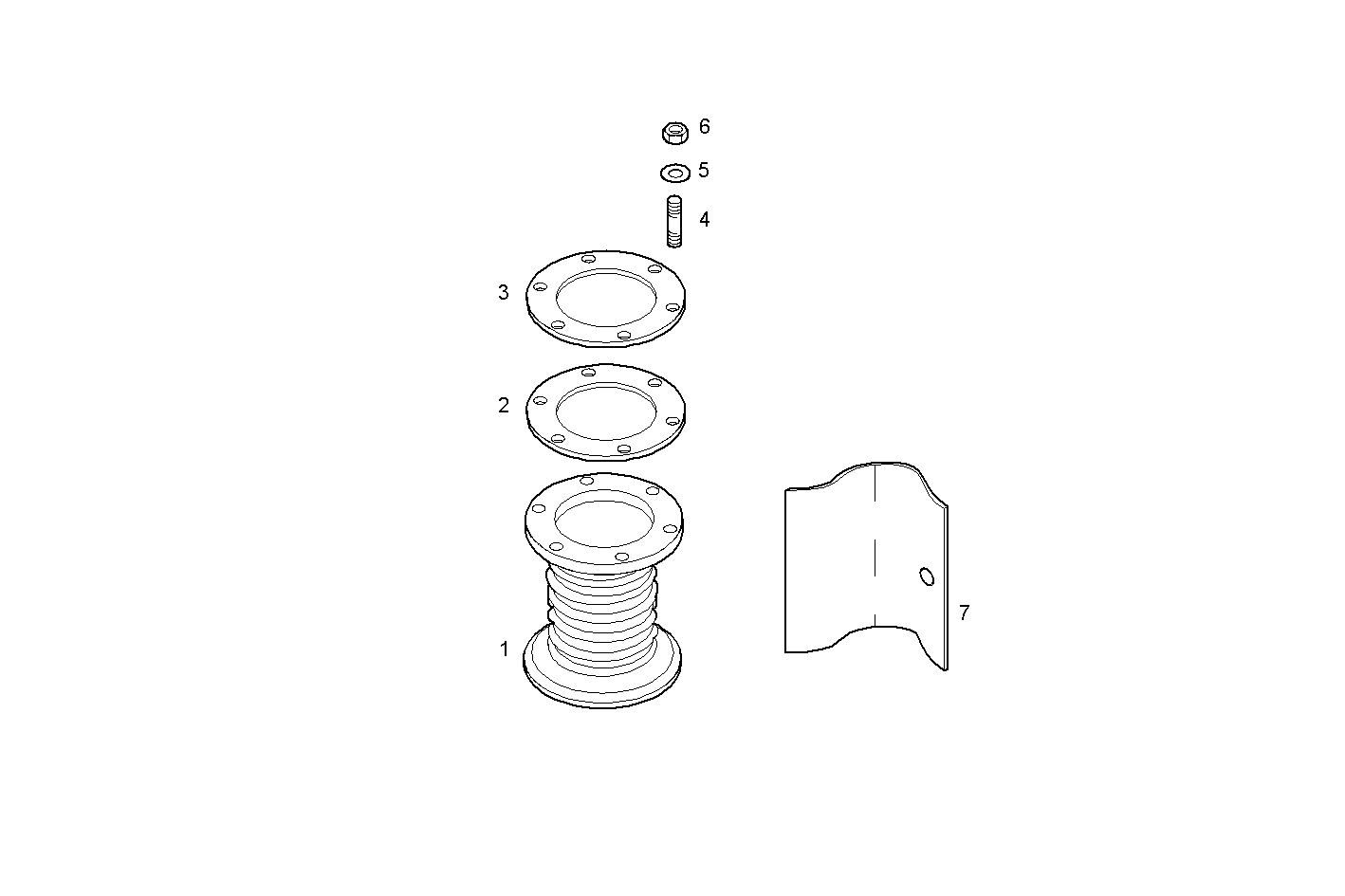

UPWARD REAR EXHAUST ELBOW
Assembly ID: A40030520
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 8045579 | EXHAUST BELLOWS | 2 | ||
| 2 | 8010072 | GASKET | 2 | ||
| 3 | 8022504 | FLANGE | 2 | ||
| 4 | 16731234 | STUD | 12 | ||
| 5 | 17090174 | SPRING WASHER | 12 | ||
| 6 | 17038131 | HEXAGON NUT | 12 | ||
| 7 | 8041813 | PROTECTION | 2 |
Applies to engines
| Engine | Family | |
|---|---|---|
| V08ENTM75.10A210 | VECTOR 8 | view |
| V08ENTM75.10B230 | VECTOR 8 | view |
| V08ENTM11.10P210 | VECTOR 8 | view |
| V08ENTM12.10A210 | VECTOR 8 | view |
