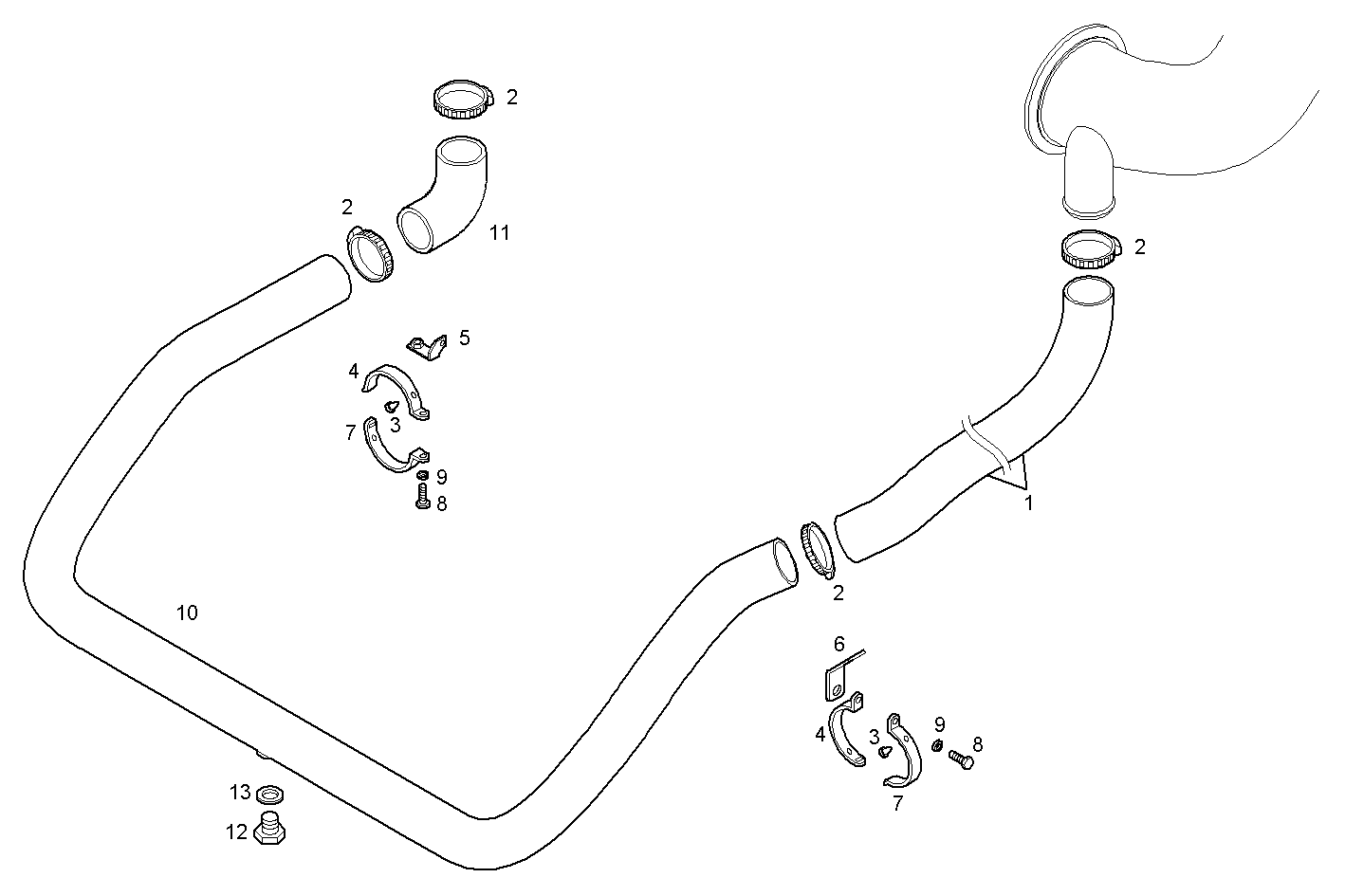

GAS-WATER MIXER WITH STERN OUTLET
Assembly ID: A40050515-02
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 8019908 | HOSE | 1 | ||
| 2 | 17764993 | CLIP | 2 | ||
| 3 | 1366290 | RUBBER LUG | 8 | ||
| 4 | 8113296 | CLAMP | 2 | ||
| 5 | 8033807 | FASTENING BRACKET | 1 | ||
| 6 | 8037411 | FASTENING BRACKET | 1 | ||
| 7 | 8113295 | CLAMP | 2 | ||
| 8 | 16605424 | SCREW | 2 | ||
| 9 | 17089474 | SPRING WASHER | 2 | ||
| 10 | 8037387 | SEA WATER PIPE | 1 | ||
| 11 | 8037390 | WATER HOSE | 1 | ||
| 12 | 16992140 | PLUG | 1 | ||
| 13 | 99489016 | SEAL GASKET | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| C78ENTM55.10 | CURSOR 8 | view |
