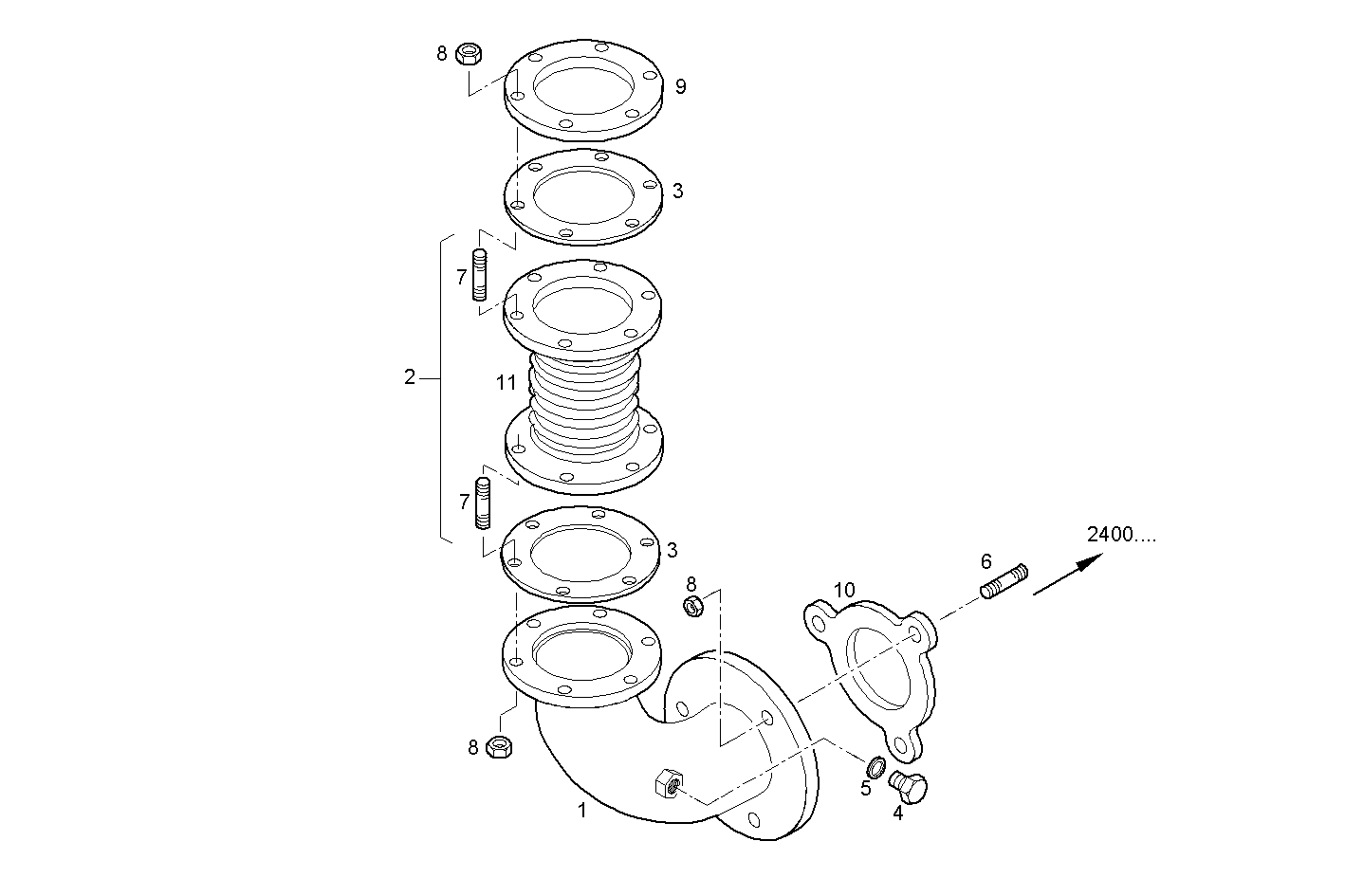

TURNING EXHAUST ELBOW WITH FLEXIBLE

Assembly ID: A40120503

TURNING EXHAUST ELBOW WITH FLEXIBLE

Parts

# Part number Description Note Quantity
1 8049499 EXHAUST ELBOW 1
2 8010252 EXHAUST BELLOWS 1
3 8009606 GASKET 2
4 16992211 THREADED PLUG 1
5 4858607 WASHER 1
6 98492637 STUD 3
7 13516921 STUD 12
8 17044721 HEXAGON NUT 15
9 4919183 FLANGE 1
10 504050114 FLAT ENGINE GASKET 1
11 4935378 EXHAUST BELLOWS 1

Applies to engines

Engine Family
F32MNTX88.00 F32 mechanic. - TIER 3 view
F32TM1X.A008 F32 mechanic. - TIER 3 view
F32MNSA85.10 F32 mechanic. - 2002/88/CE view
GEF3240MA.R980 GEF32 mechanic. - 2008/88/CE view
F32MNTA85.00 F32 mechanic. - TIER 2 view
GEF3250MA.R980 GEF32 mechanic. - 2008/88/CE view
