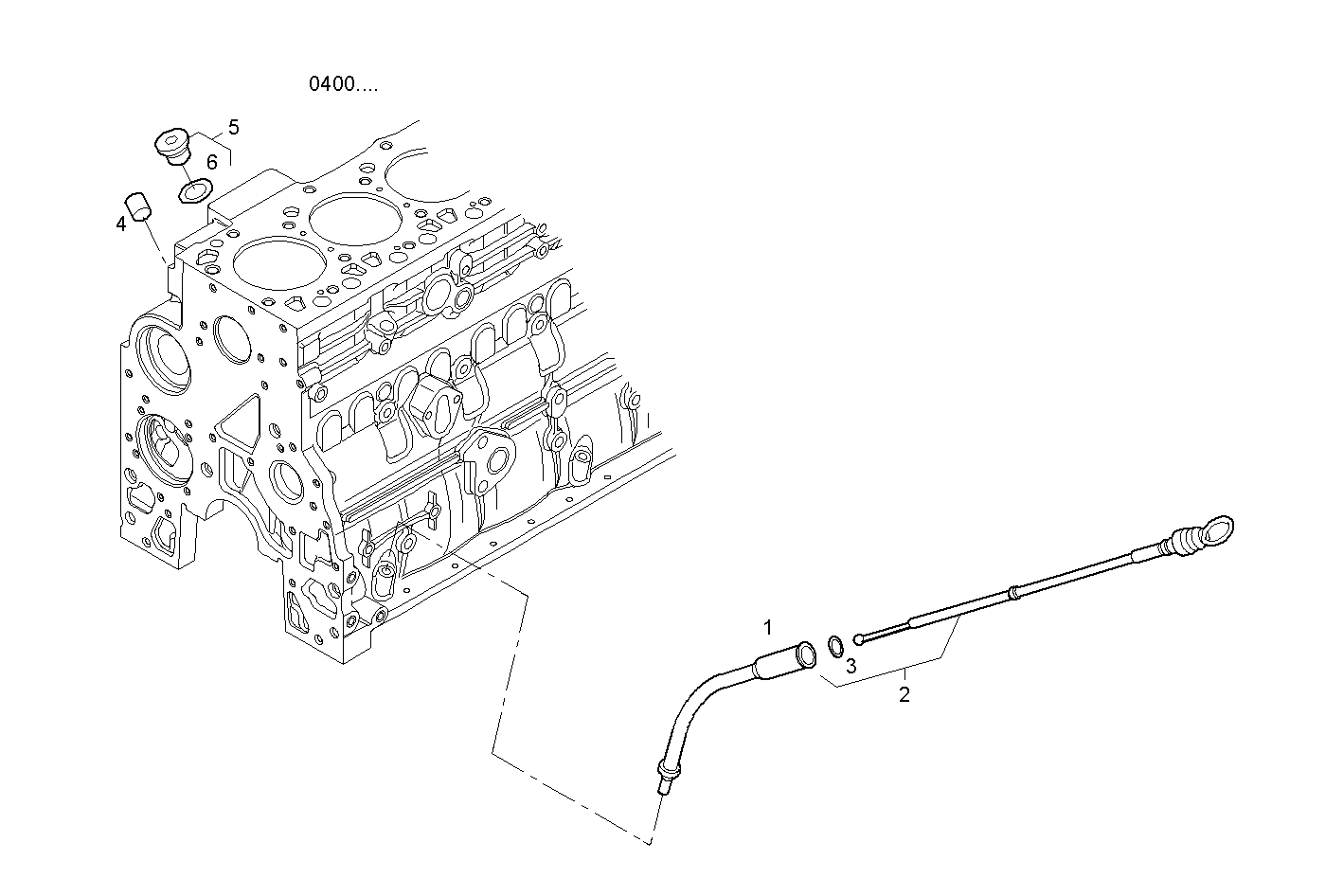

SHORT OIL DIPSTICK LEFT SIDE
Assembly ID: A41000504
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 504078385 | OIL LEVEL TUBE | 1 | ||
| 2 | 504078491 | OIL DIPSTICK | 1 | ||
| 3 | 4898502 | O-RING | 1 | ||
| 4 | 4899036 | PLUG | 1 | ||
| 5 | 4897330 | PLUG | 2 | ||
| 6 | 4895610 | O-RING | 2 |
Applies to engines
| Engine | Family | |
|---|---|---|
| N45MNSE00.00 | NEF 4 mechanic. - TIER 2 | view |
| N45MNTE20.00 | NEF 4 mechanic. - TIER 2 | view |
| N45MNAE00.00 | NEF 4 mechanic. - TIER 2 | view |
| N45MNAU00.00 | NEF 4 mechanic. - TIER 2 | view |
| N45MNSU00.00 | NEF 4 mechanic. - TIER 2 | view |
| N45MNTU20.00 | NEF 4 mechanic. - TIER 2 | view |
| N45MNAD00.00 | NEF 4 mechanic. - TIER 2 | view |
| N45MNSD00.00 | NEF 4 mechanic. - TIER 2 | view |
| N45MNTD20.00 | NEF 4 mechanic. - TIER 2 | view |
| N45MNTD22.00 | NEF 4 mechanic. - TIER 2 | view |
| N45MNSD00.00A004 | NEF 4 mechanic. - TIER 2 | view |
| N45MNTD20.00A004 | NEF 4 mechanic. - TIER 2 | view |
| N45MNTX20.00 | NEF 4 mechanic. - TIER 3 | view |
| N45MNSX02.00 | NEF 4 mechanic. - TIER 3 | view |
| N45MNTX21.00 | NEF 4 mechanic. - TIER 3 | view |
