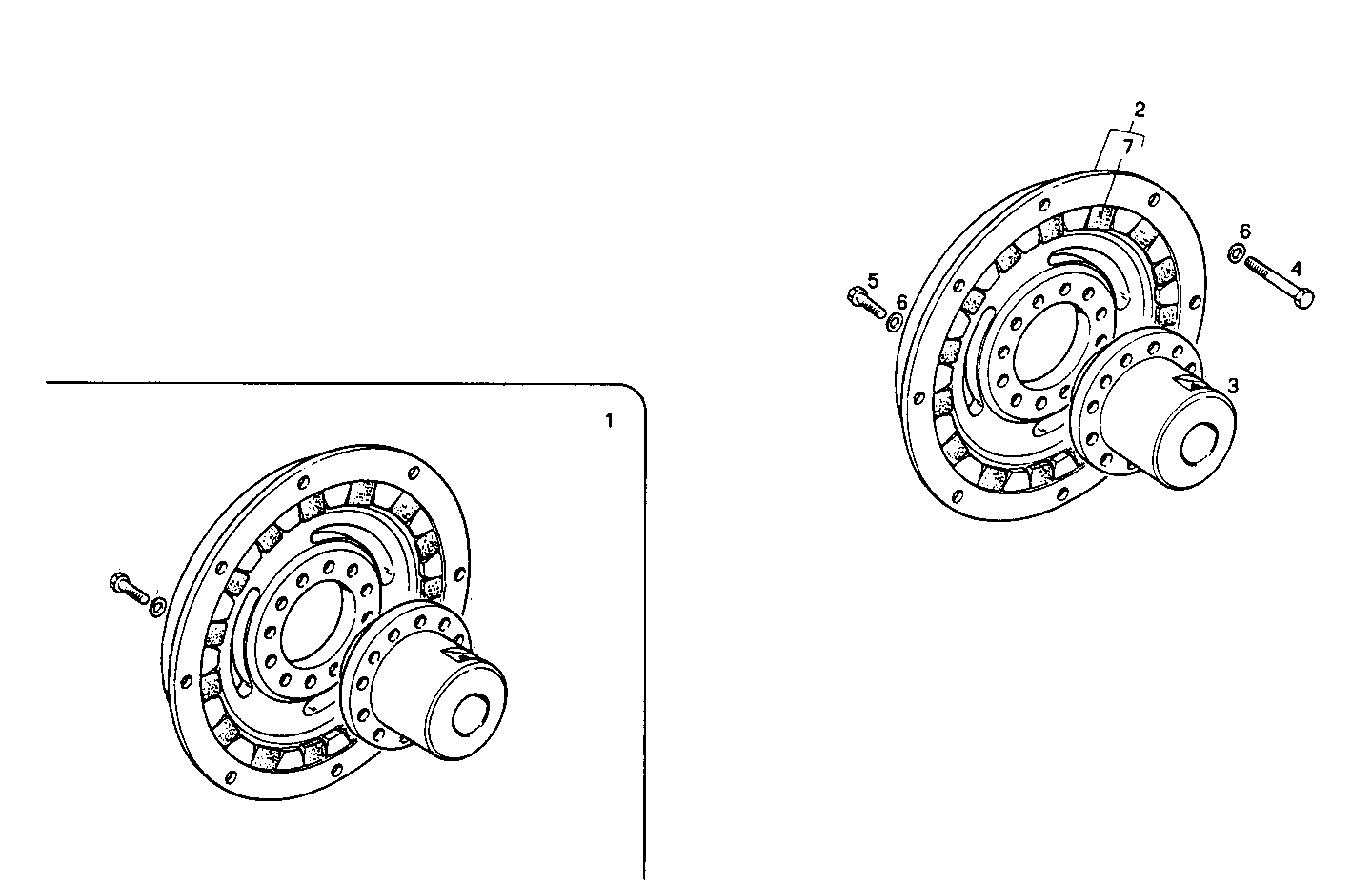

ELASTIC COUPLING
Assembly ID: A44020001
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 8103250 | FLEXIBLE COUPLING | 1 | ||
| 2 | 4934198 | COUPLER | 1 | ||
| 3 | 8103251 | HUB | 1 | ||
| 4 | 11306921 | SCREW | 8 | ||
| 5 | 15970921 | HEXAGON BOLT | 8 | ||
| 6 | 11198379 | SPRING WASHER | 16 | ||
| 7 | 4932462 | DOWEL | 16 |
Applies to engines
| Engine | Family | |
|---|---|---|
| 8031i05.05 | 8031i05 | view |
| 8041i05.05 | 8041i05 | view |
| 8041i05.55 | 8041i05 | view |
| 8041Si25.05 | 8041Si25 | view |
| 8041Si25.55 | 8041Si25 | view |
| 8045SE00.50 | 8045SE00 | view |
| 8045E00.00 | 8045E00 | view |
| 8035E00.00 | 8035E00 | view |
| 8045SE00.00 | 8045SE00 | view |
| 8041i05.00 | 8041i05 | view |
| 8045SU00.00 | 8045SU00 | view |
| 8045SU00.50 | 8045SU00 | view |
| 8041M08.40 | 8041M08 | view |
| 8041M09.40 | 8041M09 | view |
| 8031M06.01 | 8031M06 | view |
| 8031M06.21 | 8031M06 | view |
| 8035M06.00 | 8035M06 | view |
| 8035M06.21 | 8035M06 | view |
| 8035M06.01 | 8035M06 | view |
| 8035M06.20 | 8035M06 | view |
