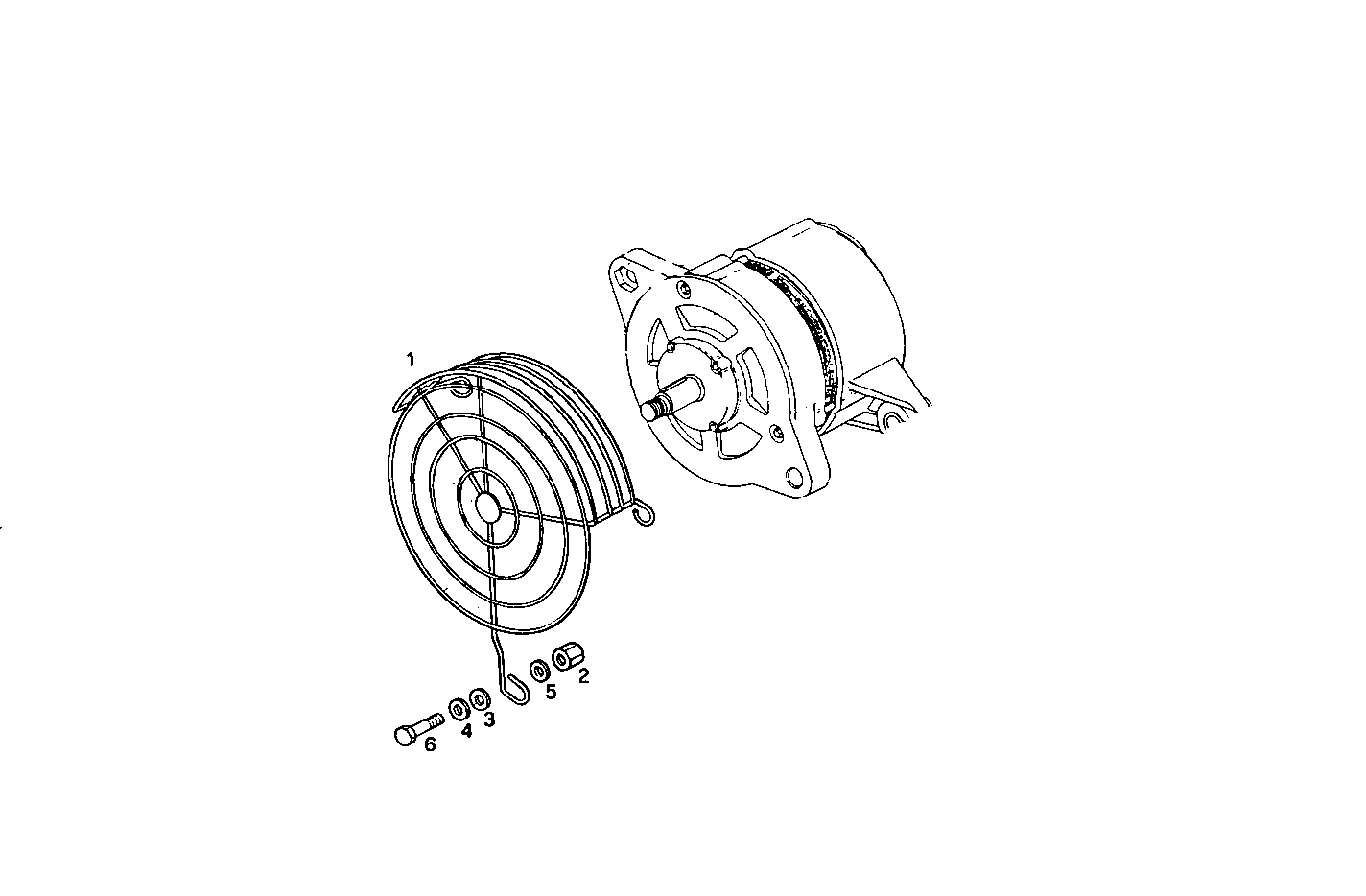

GUARD
Assembly ID: A48000002
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 8113839 | PROTECTION | 1 | ||
| 2 | 8005194 | SPACING BAR | 1 | ||
| 3 | 12646901 | WASHER | 1 | ||
| 4 | 17090174 | SPRING WASHER | 1 | ||
| 5 | 12626201 | WASHER | 2 | ||
| 6 | 15004021 | HEXAGON BOLT | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| 8361SRi13.00 | 8361SRi13 | view |
| 8361SRi15.02 | 8361SRi15 | view |
| 8361Si11.05 | 8361Si11 | view |
| 8361SRi11.05 | 8361SRi11 | view |
| 8361SRi10.01 | 8361SRi10 | view |
| 8361SRi15.01 | 8361SRi15 | view |
| 8361SRE10.00 | 8361SRE10 | view |
| 8361Si10.00 | 8361Si10 | view |
| 8361SRI10.01A801 | 8361SRi10 | view |
