SHIELDS

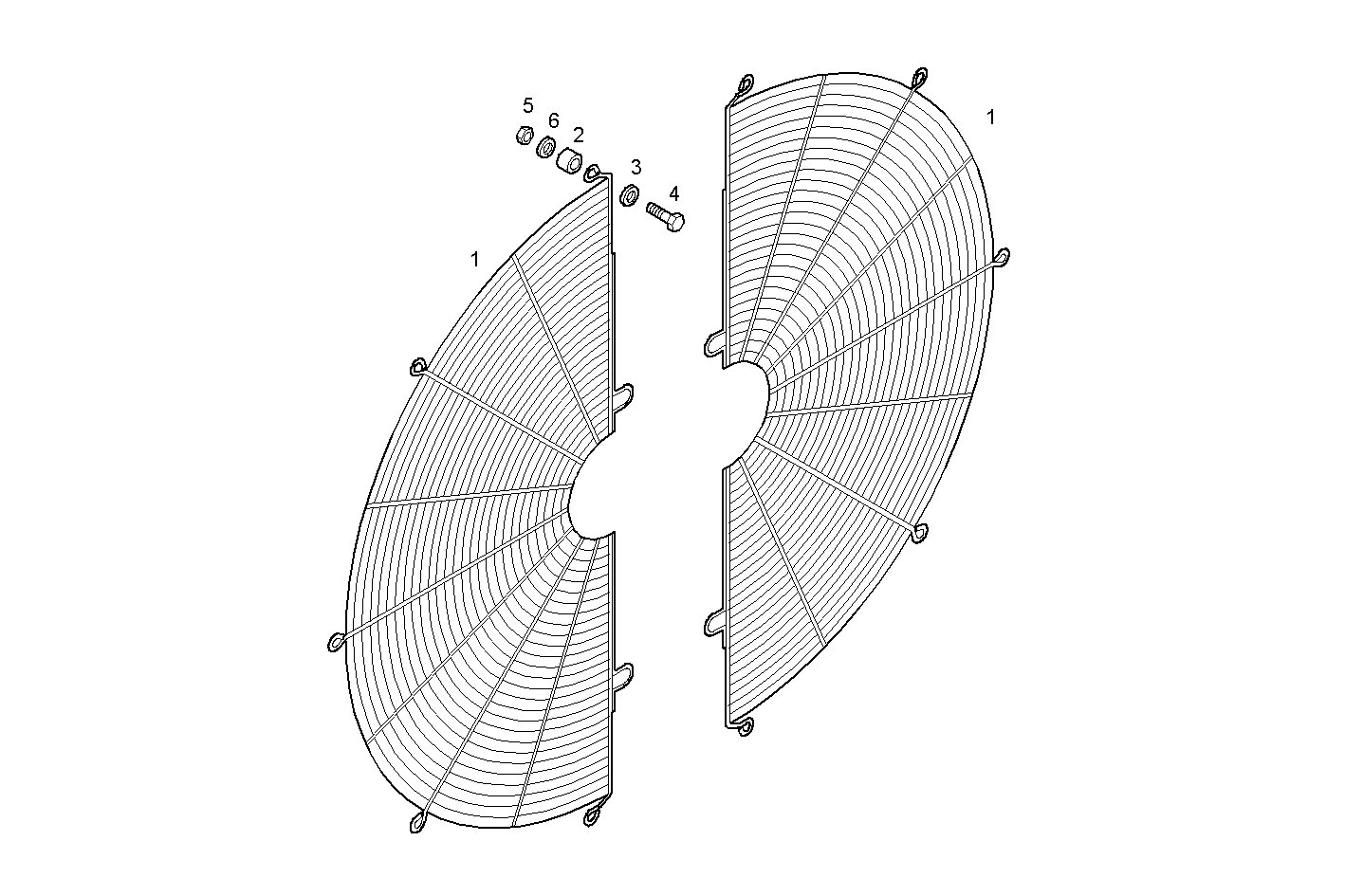

Assembly ID: A48010514

SHIELDS

Parts

# Part number Description Note Quantity
1 8028460 PROTECTION 2
2 17816314 SPACING BAR 10
3 17089474 SPRING WASHER 10
4 16605734 HEXAGON BOLT 10
5 17037925 HEXAGON NUT 10
6 17089774 SPRING WASHER 10

Applies to engines

Engine Family
C78ENTD20.00 CURSOR 8 - TIER 2 view
C78ENTE60.10 CURSOR 8 - TIER 2 view
GECURSOR250E.1R990 GECURSOR 8 - TIER 2 view
CURSOR78TE2.1A001 CURSOR 8 - TIER 2 view
CURSOR78TE2.1A002 CURSOR 8 - TIER 2 view
C78ENTD20.00A800 CURSOR 8 - TIER 2 view
CURSOR78TE2.1A559 CURSOR 8 - TIER 2 view
GECURSOR250E.1A551 GECURSOR 8 - TIER 2 view
GECURSOR250E.1A71M GECURSOR 8 - TIER 2 view
PUC78ENTD20.00A100 CURSOR 8 - TIER 2 view
C87ENTX20.00 CURSOR 9 - TIER 3 view
C87ENTX20.00A800 CURSOR 9 - TIER 3 view
C87ENTX20.00A801 CURSOR 9 - TIER 3 view
C87ENTX20.00A802 CURSOR 9 - TIER 3 view
C87ENTX60.00 CURSOR 9 - 2002/88/CE - TIER 3 view
CURSOR87TE1D.R991 CURSOR 9 - 2002/88/CE - TIER 3 view
GECURSOR250ES.R990 GECURSOR 8 - 2002/88/CE view
CURSOR87TE1D.A001 CURSOR 9 - 2002/88/CE - TIER 3 view
CURSOR87TE1D.A002 CURSOR 9 - 2002/88/CE - TIER 3 view
GECURSOR270ED.R990 GECURSOR 9 - 2002/88/CE TIER 3 view
C87ENTX20.00A803 CURSOR 9 - TIER 3 view
GECURSOR250ES.A001 GECURSOR 8 - 2002/88/CE view
GECURSOR250ES.A551 GECURSOR 8 - 2002/88/CE view
GECURSOR250ES.A71M GECURSOR 8 - 2002/88/CE view
CURSOR78TE2S.A001 CURSOR 8 - 2002/88/CE view
CURSOR78TE2S.A002 CURSOR 8 - 2002/88/CE view
CURSOR78TE2S.A559 CURSOR 8 - 2002/88/CE view
CURSOR78TE2S.S550 CURSOR 8 - 2002/88/CE view
CURSOR87TE1D.S550 CURSOR 9 - 2002/88/CE - TIER 3 view
CURSOR87TE1D.A559 CURSOR 9 - 2002/88/CE - TIER 3 view
GECURSOR250ED.R990 GECURSOR 9 - TIER 3 view
GECURSOR250ED.A71M GECURSOR 9 - TIER 3 view
GECURSOR250ED.A551 GECURSOR 9 - TIER 3 view
CURSOR87TE1D.A008 CURSOR 9 - 2002/88/CE - TIER 3 view
PUC78ENTD20.20A100 CURSOR 8 - TIER 2 view
