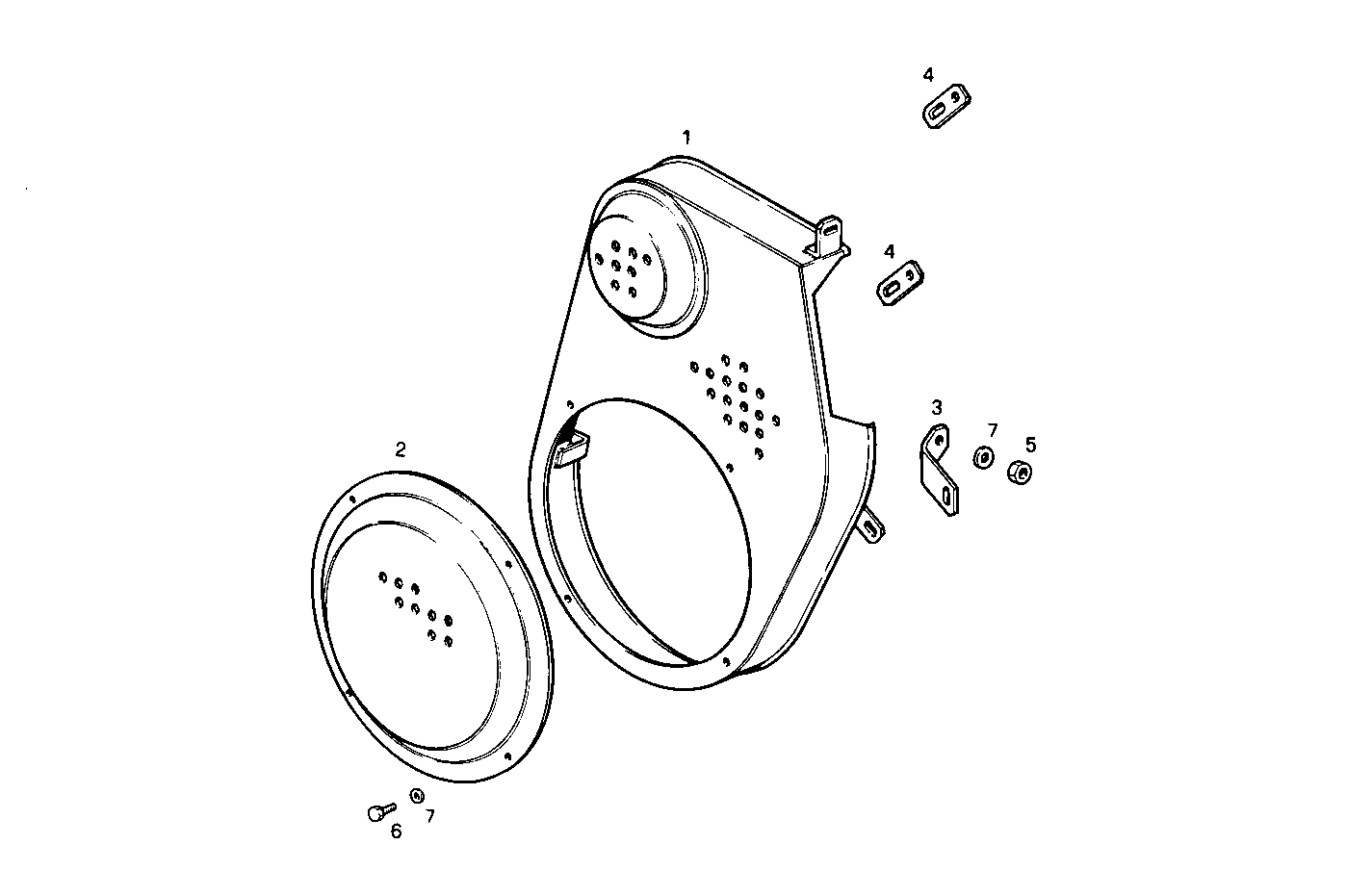

GUARD
Assembly ID: A48020002
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 4936806 | PROTECTION | 1 | ||
| 2 | 4936807 | COVER | 1 | ||
| 3 | 4936809 | RETAINER | 1 | ||
| 4 | 4936808 | RETAINER | 3 | ||
| 5 | 16100811 | HEXAGON NUT | 4 | ||
| 6 | 16043411 | HEXAGON BOLT | 4 | ||
| 7 | 11193271 | WASHER | 8 |
Applies to engines
| Engine | Family | |
|---|---|---|
| 8361SM21.00 | 8361SM21 | view |
| 8361SRM32.00 | 8361SRM32 | view |
| 8361SRM32.40 | 8361SRM32 | view |
| 8361SM21.01 | 8361SM21 | view |
