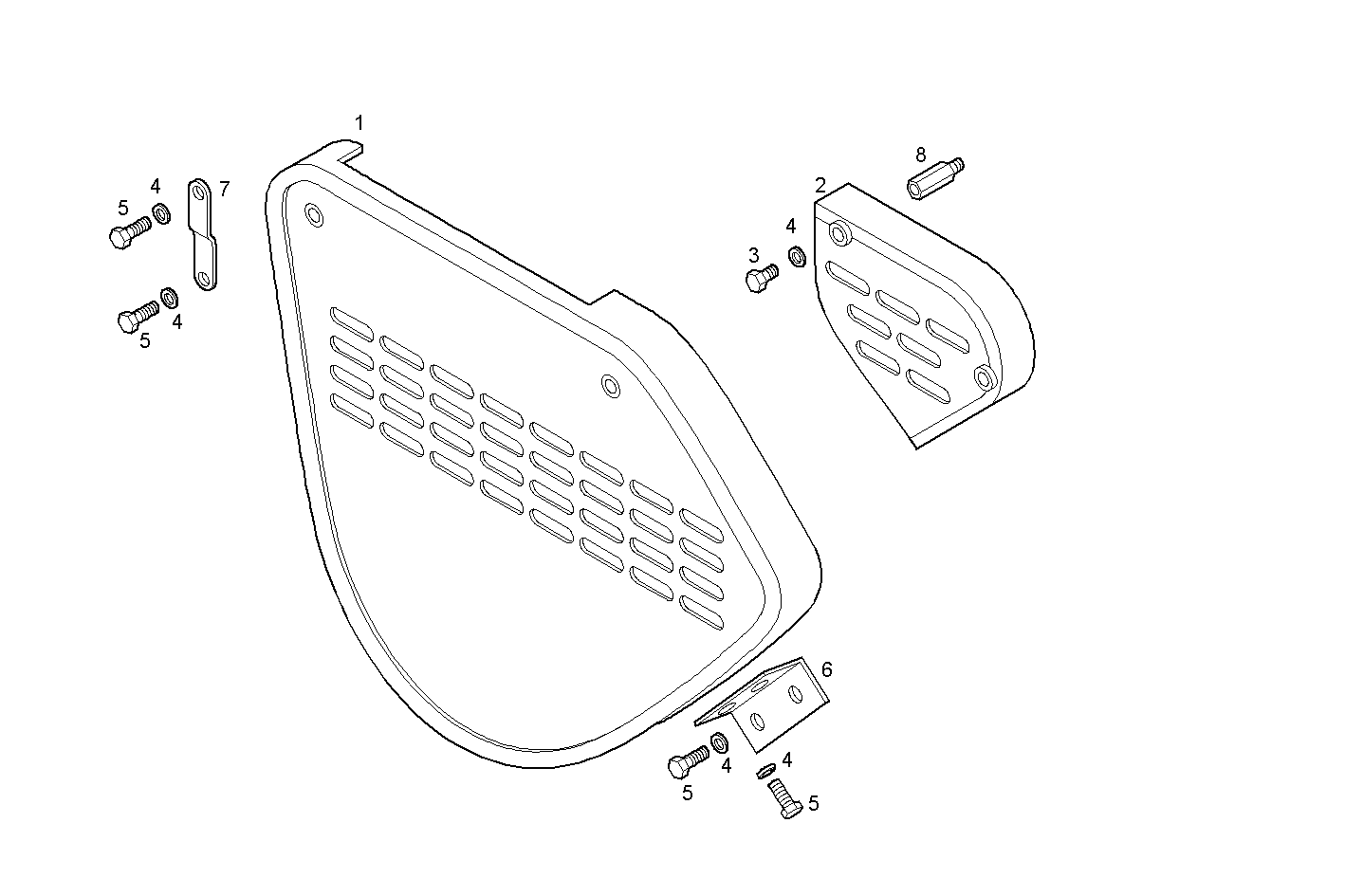

SHIELDS
Assembly ID: A48020038
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 8030879 | PROTECTION | 1 | ||
| 2 | 8030936 | PROTECTION | 1 | ||
| 3 | 16606424 | HEXAGON BOLT | 2 | ||
| 4 | 17089474 | SPRING WASHER | 14 | ||
| 5 | 16605424 | SCREW | 12 | ||
| 6 | 8030995 | RETAINER | 2 | ||
| 7 | 8030996 | RETAINER | 2 | ||
| 8 | 8033833 | SPACING BAR | 2 |
Applies to engines
| Engine | Family | |
|---|---|---|
| C78ENTM50.10 | CURSOR 8 | view |
