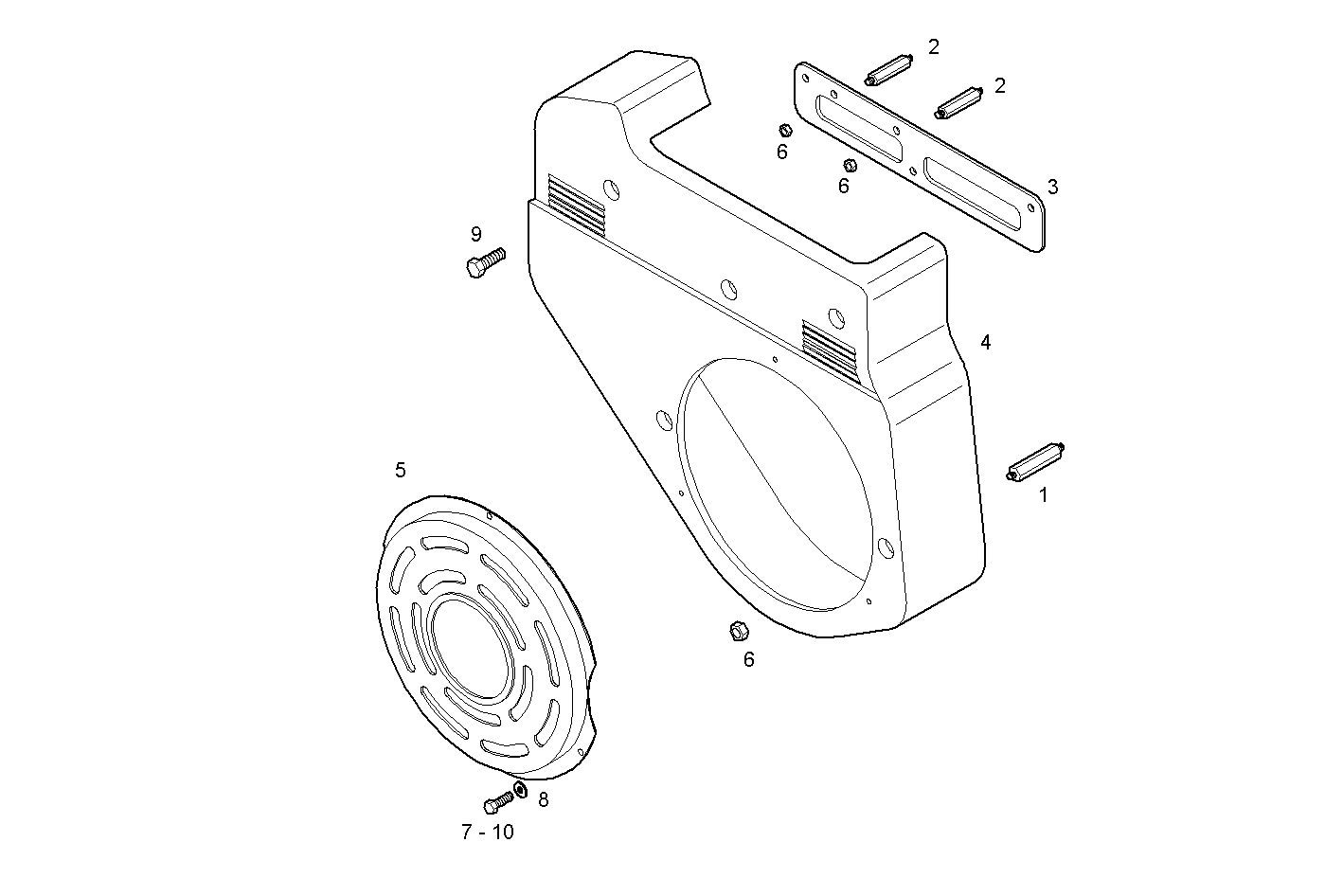

GUARD
Assembly ID: A48020505
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 8034023 | SPACING BAR | 2 | ||
| 2 | 8034022 | SPACING BAR | 2 | ||
| 3 | 8033078 | FASTENING BRACKET | 1 | ||
| 4 | 8039053 | PROTECTION | 1 | ||
| 5 | 8033076 | PROTECTION | 1 | ||
| 6 | 16984235 | HEXAGON NUT | 4 | ||
| 7 | 16603677 | HEXAGON BOLT | 3 | ||
| 8 | 17094614 | WASHER | 3 | ||
| 9 | 16586225 | HEXAGON BOLT | 3 | ||
| 10 | 16596924 | HEXAGON BOLT | 3 |
Applies to engines
| Engine | Family | |
|---|---|---|
| N45MNAM10.00 | NEF 4 mechanic. | view |
| N67MNAM15.00 | NEF 6 mechanic. | view |
| N67MNAM12.30 | NEF 6 mechanic. | view |
| N67MNAM15.30 | NEF 6 mechanic. | view |
| N67MNAM15.01 | NEF 6 mechanic. | view |
| N67MNAM15.31 | NEF 6 mechanic. | view |
| N45MNAM10.01 | NEF 4 mechanic. | view |
| N67MNAM15.02 | NEF 6 mechanic. | view |
| N45MNAM10.02 | NEF 4 mechanic. | view |
| N45MNAM10.30 | NEF 4 mechanic. | view |
| GMNEF60M.L50E | GMNEF 6 mechanic. | view |
| GMNEF60M.A501 | GMNEF 6 mechanic. | view |
