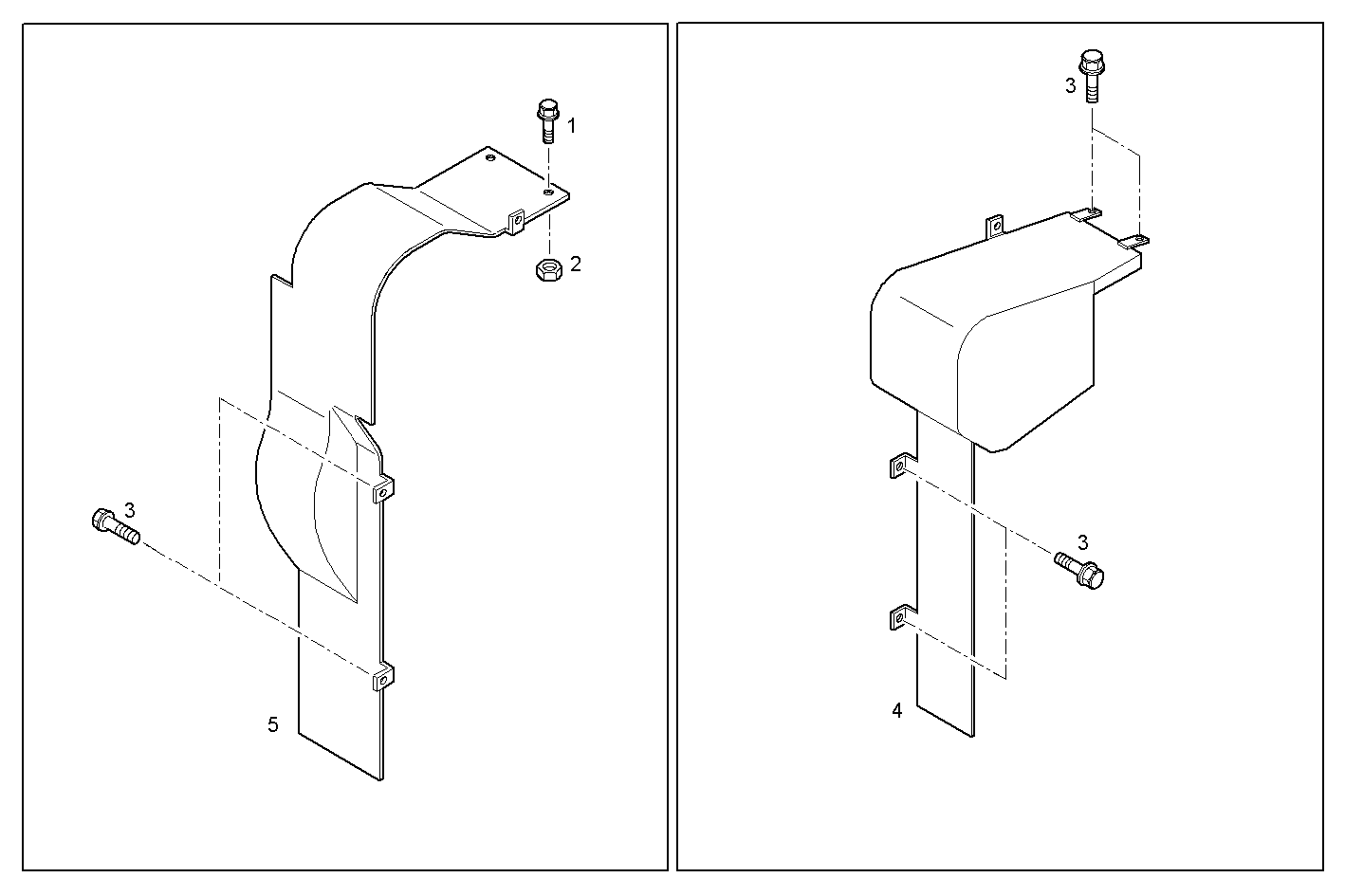

GUARD
Assembly ID: A48020518
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 16673735 | HEXAGON BOLT | 2 | ||
| 2 | 17044721 | HEXAGON NUT | 2 | ||
| 3 | 16600224 | HEXAGON BOLT | 6 | ||
| 4 | 8051031 | PROTECTION | 1 | ||
| 5 | 8051030 | PROTECTION | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| F32MNAA85.00 | F32 mechanic. - 2002/88/CE | view |
| F32AM1A.S500 | F32 mechanic. - 2002/88/CE | view |
| GEF3230MA.R980 | GEF32 mechanic. - 2008/88/CE | view |
