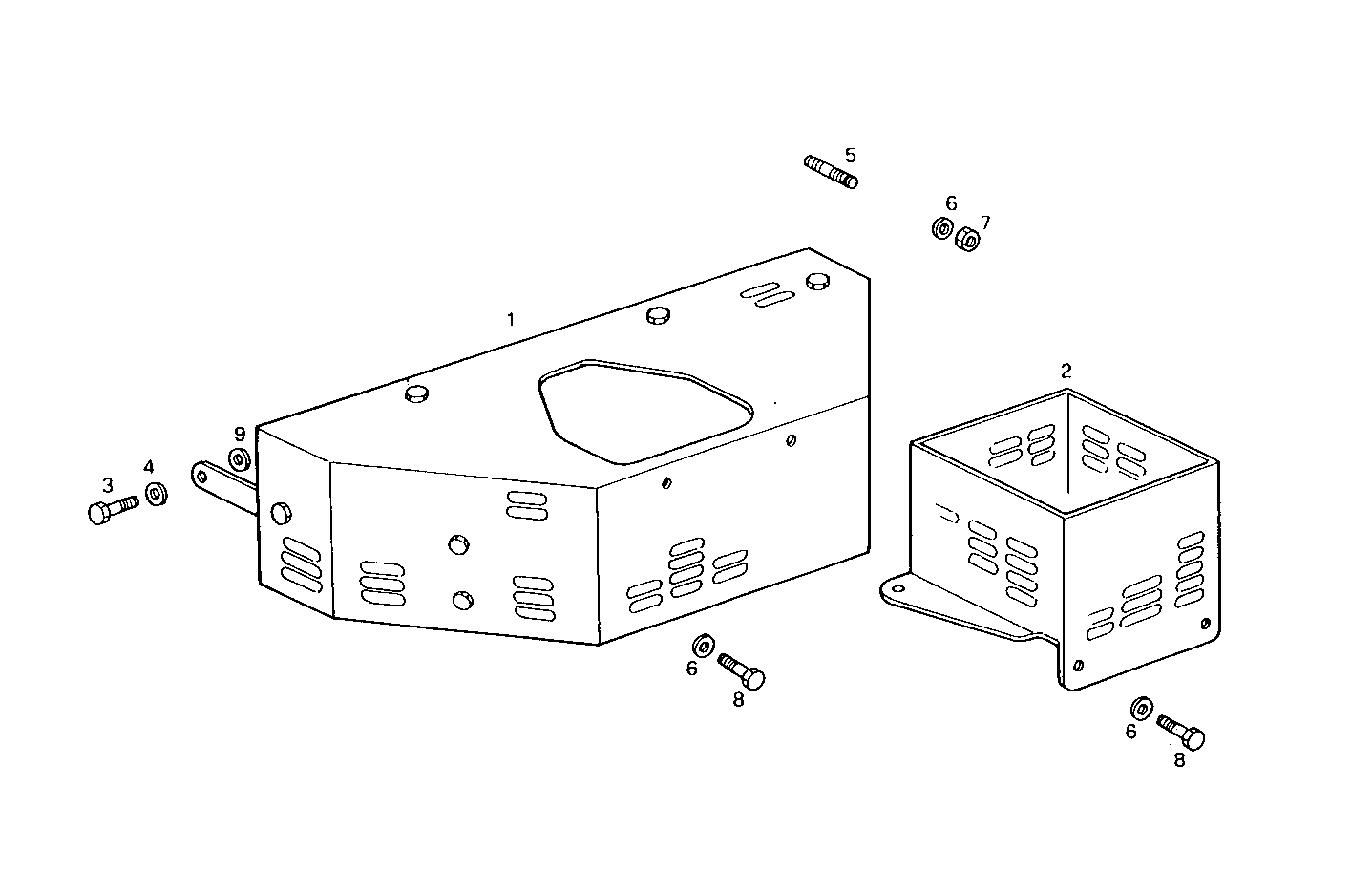

GUARD
Assembly ID: A48040013
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 8024732 | PROTECTION | 1 | ||
| 2 | 8020026 | PROTECTION | 1 | ||
| 3 | 15970521 | HEXAGON BOLT | 1 | ||
| 4 | 17090174 | SPRING WASHER | 1 | ||
| 5 | 16746524 | STUD | 3 | ||
| 6 | 17089474 | SPRING WASHER | 6 | ||
| 7 | 17037931 | HEXAGON NUT | 3 | ||
| 8 | 16605424 | SCREW | 3 | ||
| 9 | 16665604 | WASHER | 3 |
Applies to engines
| Engine | Family | |
|---|---|---|
| GE8041i06.55A905 | GE8041i06 | view |
| 8045E00.50 | 8045E00 | view |
| 8045E00.00 | 8045E00 | view |
| 8045U00.00 | 8045U00 | view |
| 8041i40.55 | 8041i40 | view |
| 8045U06.55 | 8045U06 | view |
| 8041i06.55 | 8041i06 | view |
| 8041i06.55A520 | 8041i06 | view |
| 8041i06.55A550 | 8041i06 | view |
| GE8041i06.55N900 | GE8041i06 | view |
| GE8041i06.55N920 | GE8041i06 | view |
| GE8041i06.55R900 | GE8041i06 | view |
| GE8041i06.55R920 | GE8041i06 | view |
