SHIELDS

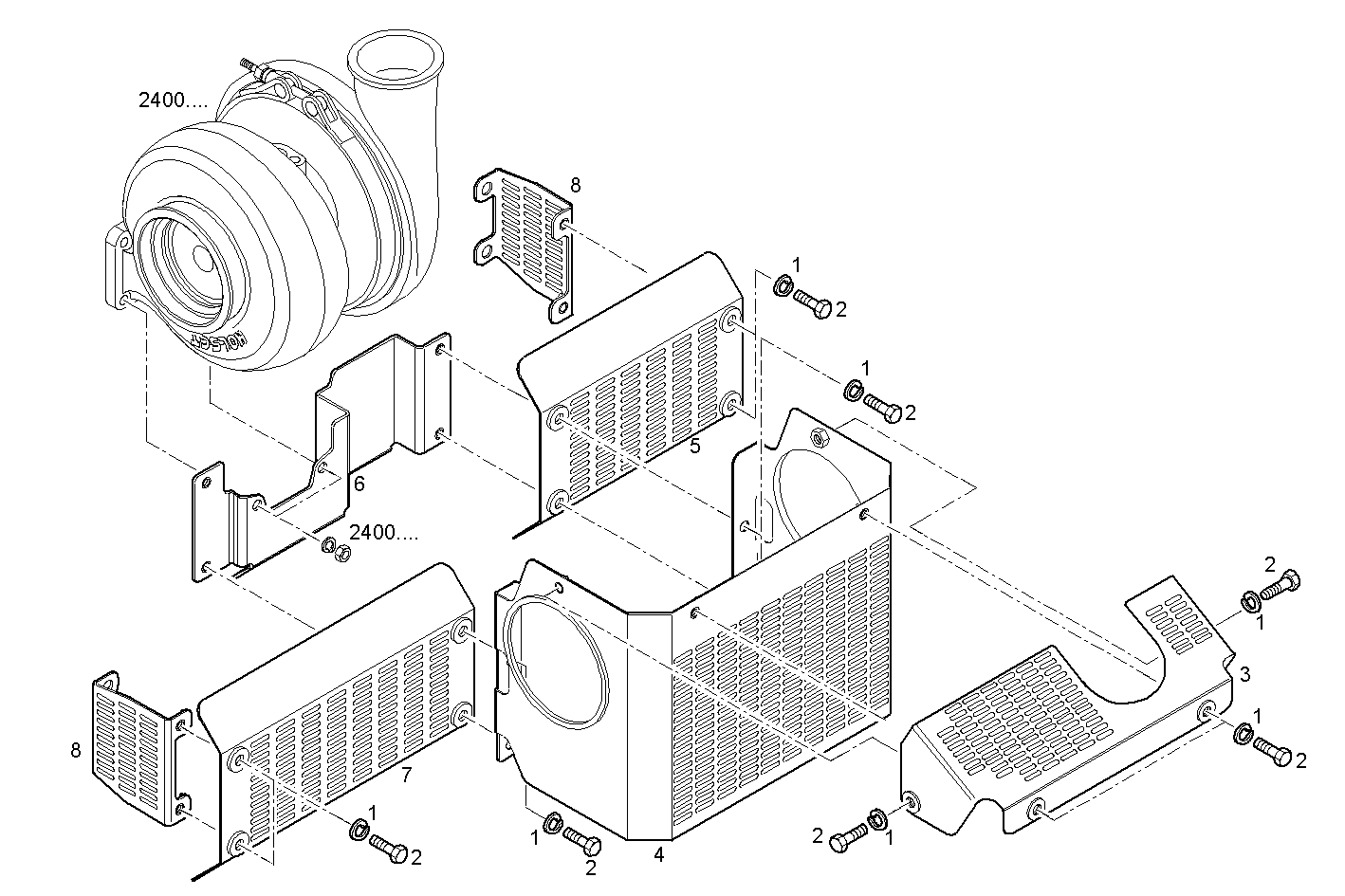

Assembly ID: A48040508
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 17089774 | SPRING WASHER | 12 | ||
| 2 | 16605424 | SCREW | 12 | ||
| 3 | 8048636 | PROTECTION | 1 | ||
| 4 | 8039913 | PROTECTION | 1 | ||
| 5 | 8039889 | PROTECTION | 1 | ||
| 6 | 8039886 | FASTENING BRACKET | 1 | ||
| 7 | 8037382 | PROTECTION | 1 | ||
| 8 | 8037196 | PROTECTION | 2 |
Applies to engines
| Engine | Family | |
|---|---|---|
| C78ENTF41.00 | CURSOR 8 - TIER 2 | view |
