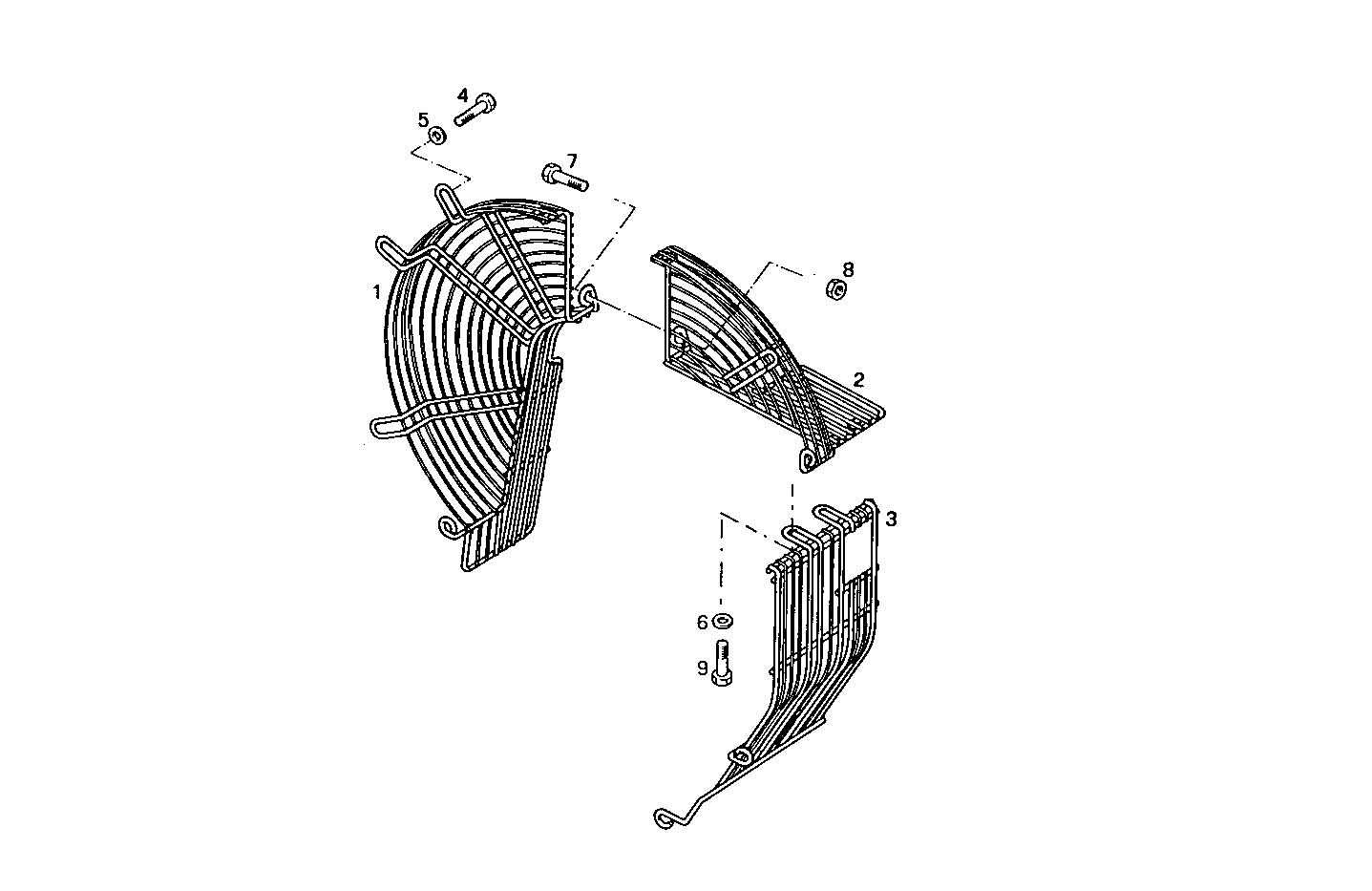

GUARD
Assembly ID: A48060022
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 8025713 | PROTECTION | 1 | ||
| 2 | 8025715 | PROTECTION | 1 | ||
| 3 | 8025716 | PROTECTION | 1 | ||
| 4 | 16605524 | HEXAGON BOLT | 9 | ||
| 5 | 17089774 | SPRING WASHER | 13 | ||
| 6 | 17088471 | SPRING WASHER | 2 | ||
| 7 | 16605624 | HEXAGON BOLT | 1 | ||
| 8 | 17037931 | HEXAGON NUT | 1 | ||
| 9 | 16603724 | HEXAGON BOLT | 2 |
Applies to engines
| Engine | Family | |
|---|---|---|
| 8061C05.05 | 8061C05 | view |
| GE8061i06.05A905 | GE8061i06 | view |
| GE8041i06.55A905 | GE8041i06 | view |
| GE8061i06.05A955 | GE8061i06 | view |
| GS8041i06.55A612 | GS8041i06 | view |
| GS8041i06.55A614 | GS8041i06 | view |
| 8061i40.05 | 8061i40 | view |
| 8065U06.05 | 8065U06 | view |
| 8045U06.55 | 8045U06 | view |
| 8061i06.05 | 8061i06 | view |
| 8061i06.05A520 | 8061i06 | view |
| 8041i06.55 | 8041i06 | view |
| 8041i06.55A520 | 8041i06 | view |
| 8041i06.55A550 | 8041i06 | view |
| 8061i06.05A500 | 8061i06 | view |
| 8061i06.05A520 | 8061i06 | view |
| 8065U06.05A580 | 8065U06 | view |
| GE8061i06.05N900 | GE8061i06 | view |
| GE8061i06.05N920 | GE8061i06 | view |
| GE8061i06.05R900 | GE8061i06 | view |
| GE8061i06.05R920 | GE8061i06 | view |
