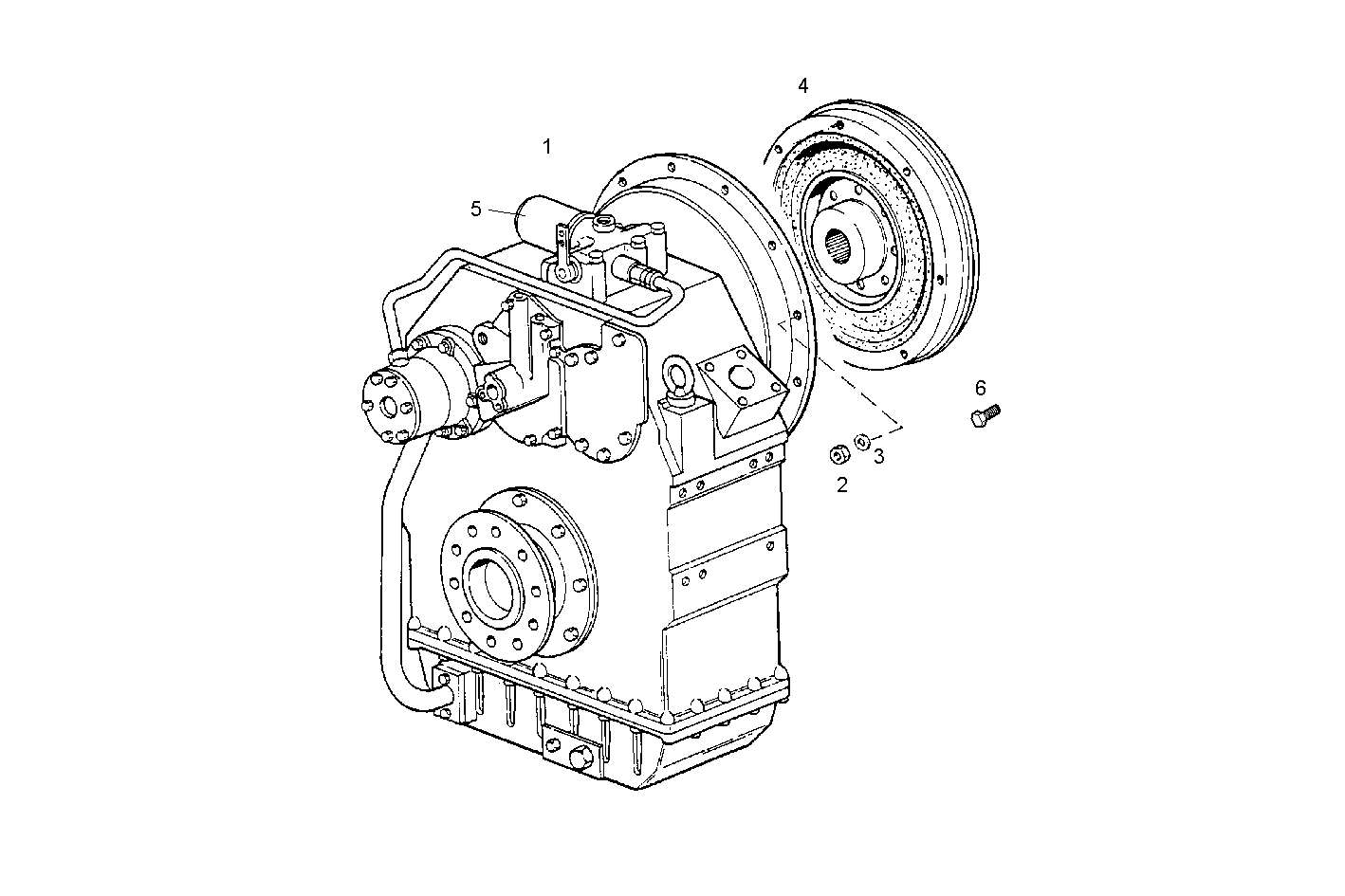

MARINE GEAR
Assembly ID: A51106504-03
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 8031187 | MARINE GEAR | 1 | ||
| 2 | 17038131 | HEXAGON NUT | 12 | ||
| 3 | 17090174 | SPRING WASHER | 12 | ||
| 4 | 8031189 | MARINE GEAR | 1 | ||
| 5 | 8107191 | OIL FILTER CARTRIDGE | 1 | ||
| 6 | 17458234 | LOCKING SCREW | 8 |
Applies to engines
| Engine | Family | |
|---|---|---|
| C78ENTM55.10 | CURSOR 8 | view |
