MARINE GEAR

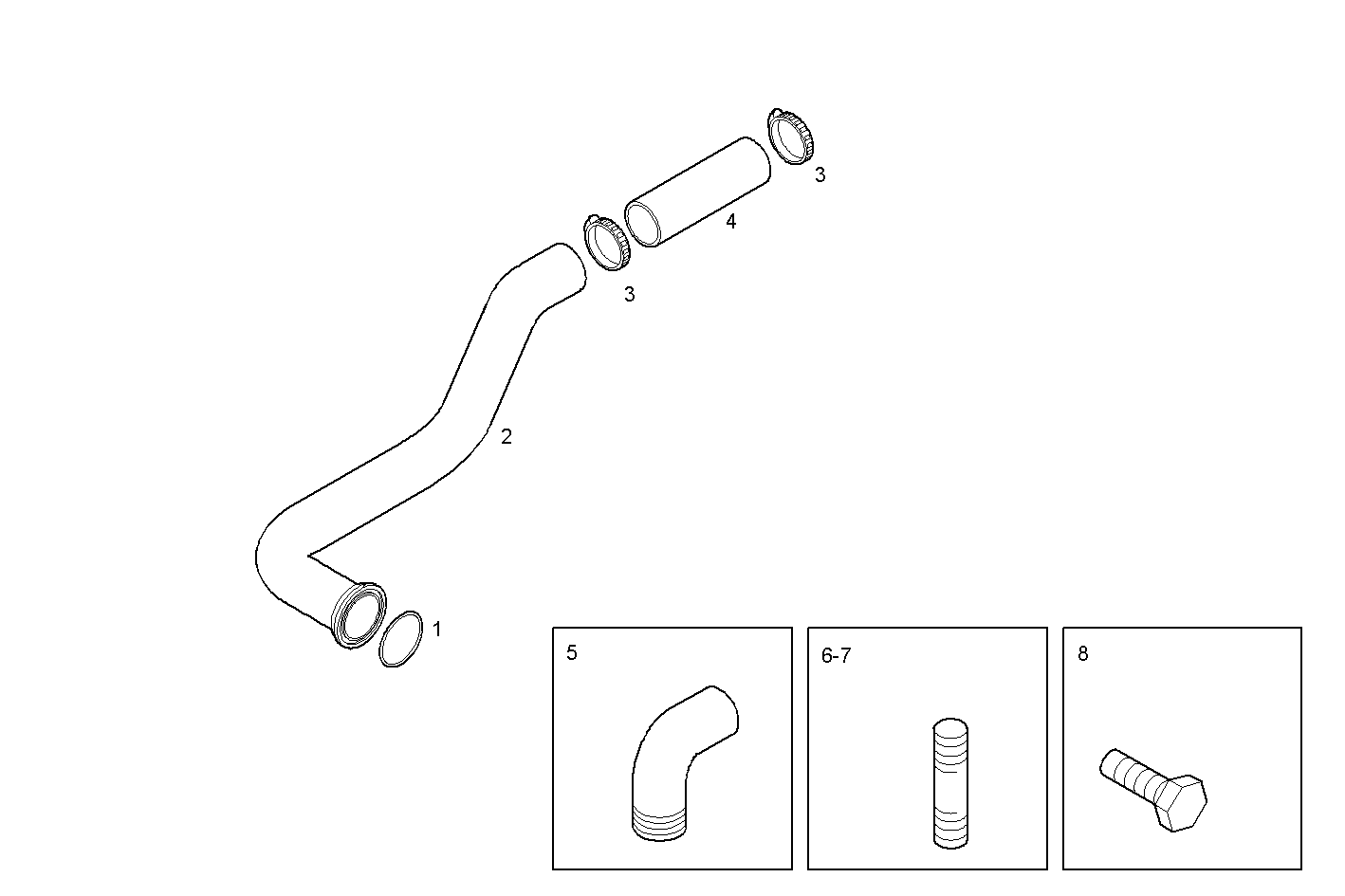

Assembly ID: A51124501-01
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 17289981 | O-RING | 1 | ||
| 2 | 8047741 | SEA WATER PIPE | 1 | ||
| 3 | 17764993 | CLIP | 2 | ||
| 4 | 4865234 | RUBBER SLEEVE | 1 | ||
| 5 | 8109665 | SEA WATER PIPE | 2 | ||
| 6 | 17368624 | STUD | 2 | ||
| 7 | 17368424 | STUD | 10 | ||
| 8 | 17458234 | LOCKING SCREW | 8 |
Applies to engines
| Engine | Family | |
|---|---|---|
| V08ENTM11.10P210 | VECTOR 8 | view |
| V08ENTM12.10A210 | VECTOR 8 | view |
