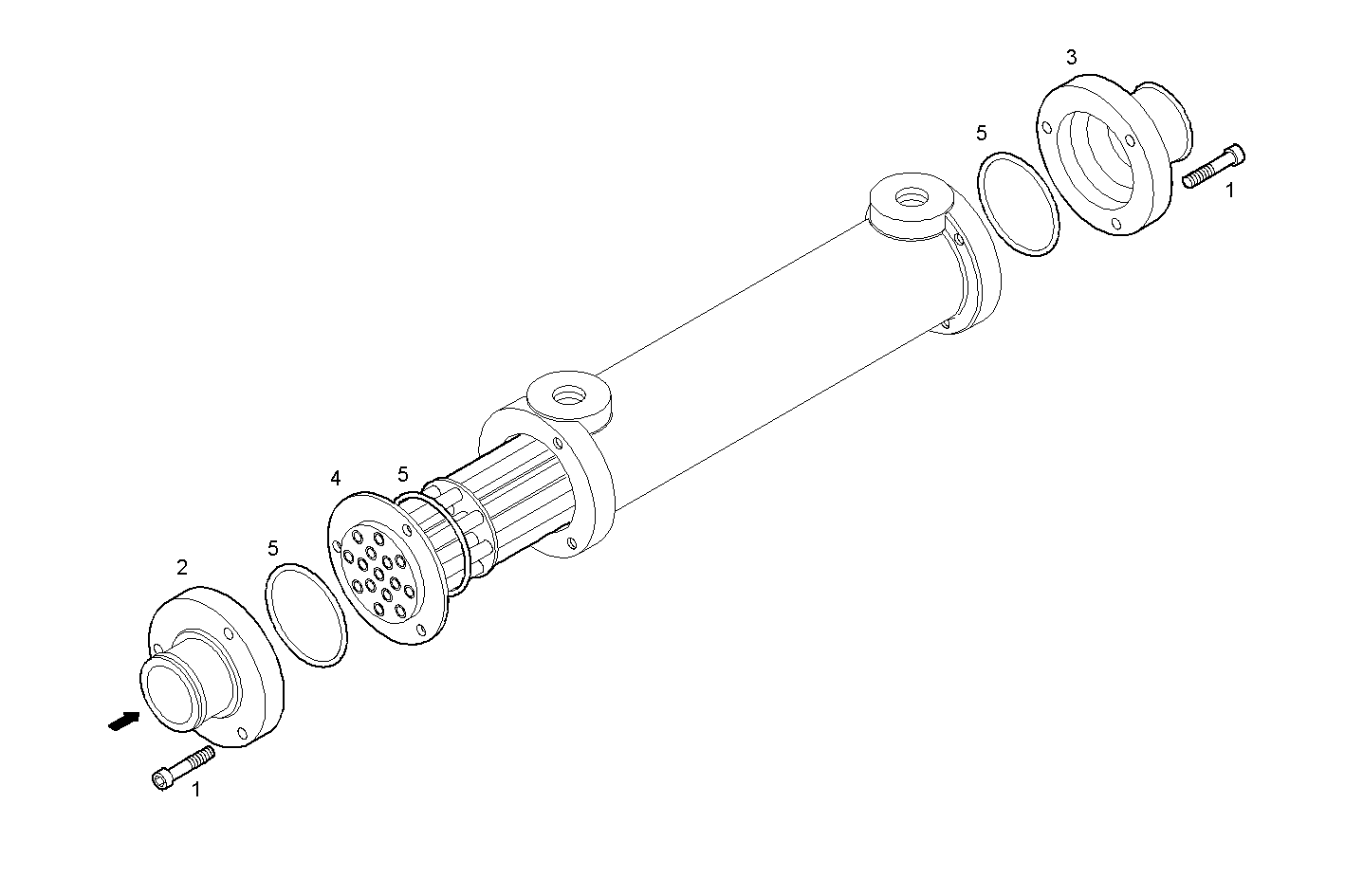

MARINE GEAR
Assembly ID: A51270501-02
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 16689424 | SOCKET-HEAD SCREW | 6 | ||
| 2 | 8093721 | HEAT EXCHANG.COVER | 1 | ||
| 3 | 8093722 | HEAT EXCHANG.COVER | 1 | ||
| 4 | 8093723 | TUBE STACK | 1 | ||
| 5 | 8093724 | O-RING | 3 |
Applies to engines
| Engine | Family | |
|---|---|---|
| N67MNAM15.01 | NEF 6 mechanic. | view |
| N67MNAM15.31 | NEF 6 mechanic. | view |
| N67MNAM15.02 | NEF 6 mechanic. | view |
