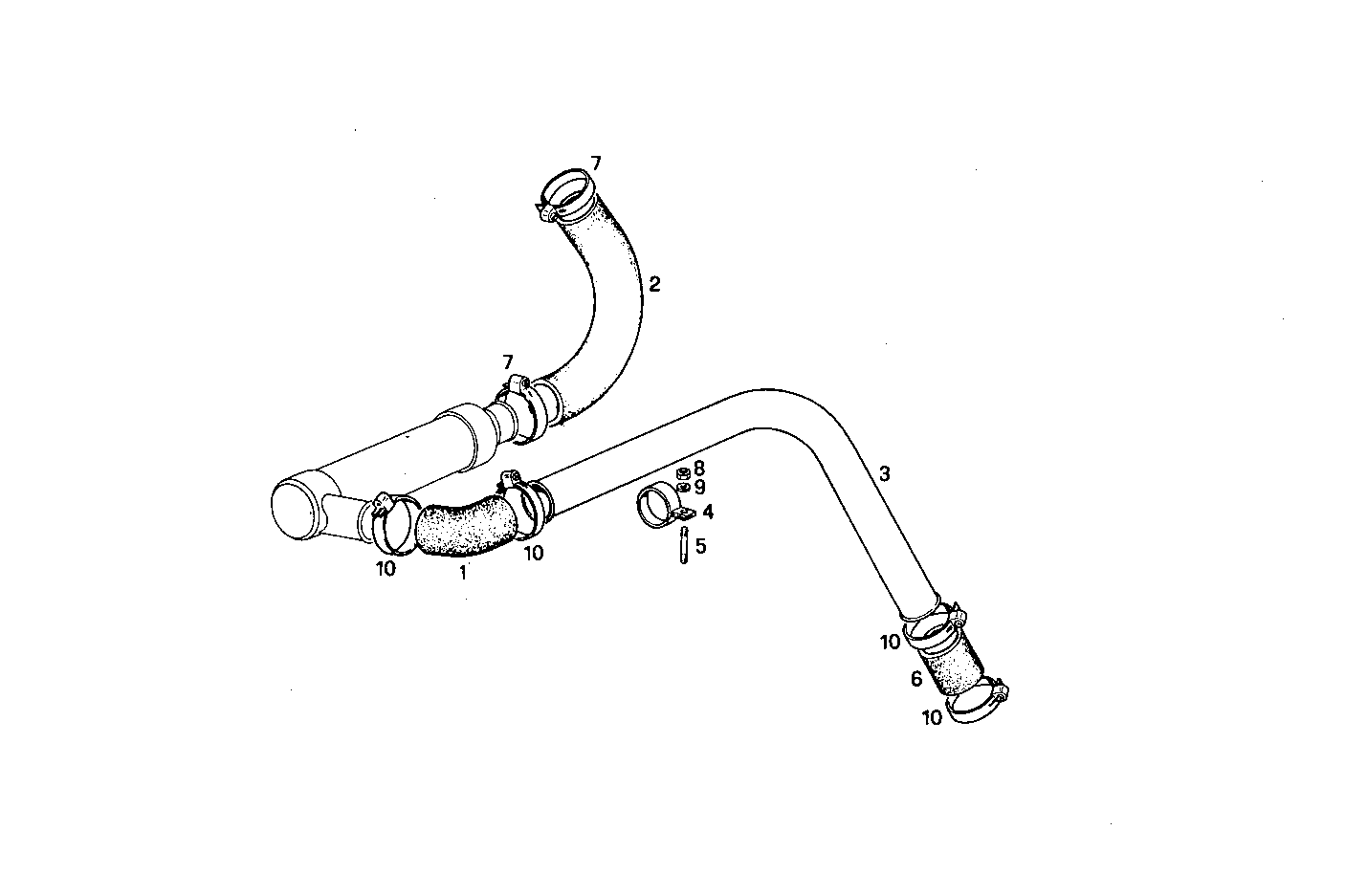

MARINE GEAR HURTH HSW 630 A
Assembly ID: A51790004-03
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 8017516 | WATER HOSE | 1 | ||
| 2 | 4929958 | RUBBER SLEEVE | 1 | ||
| 3 | 8100297 | WATER PIPE | 1 | ||
| 4 | 4936741 | CLIP | 1 | ||
| 5 | 13449321 | STUD | 1 | ||
| 6 | 17742687 | RUBBER SLEEVE | 1 | ||
| 7 | 17764993 | CLIP | 2 | ||
| 8 | 12164711 | HEXAGON NUT | 1 | ||
| 9 | 11198371 | SPRING WASHER | 1 | ||
| 10 | 17764793 | CLIP | 4 |
Applies to engines
| Engine | Family | |
|---|---|---|
| 8061SRM24.00 | 8061SRM24 | view |
| 8061SRM24.10 | 8061SRM24 | view |
| 8041SRM15.10 | 8041SRM15 | view |
