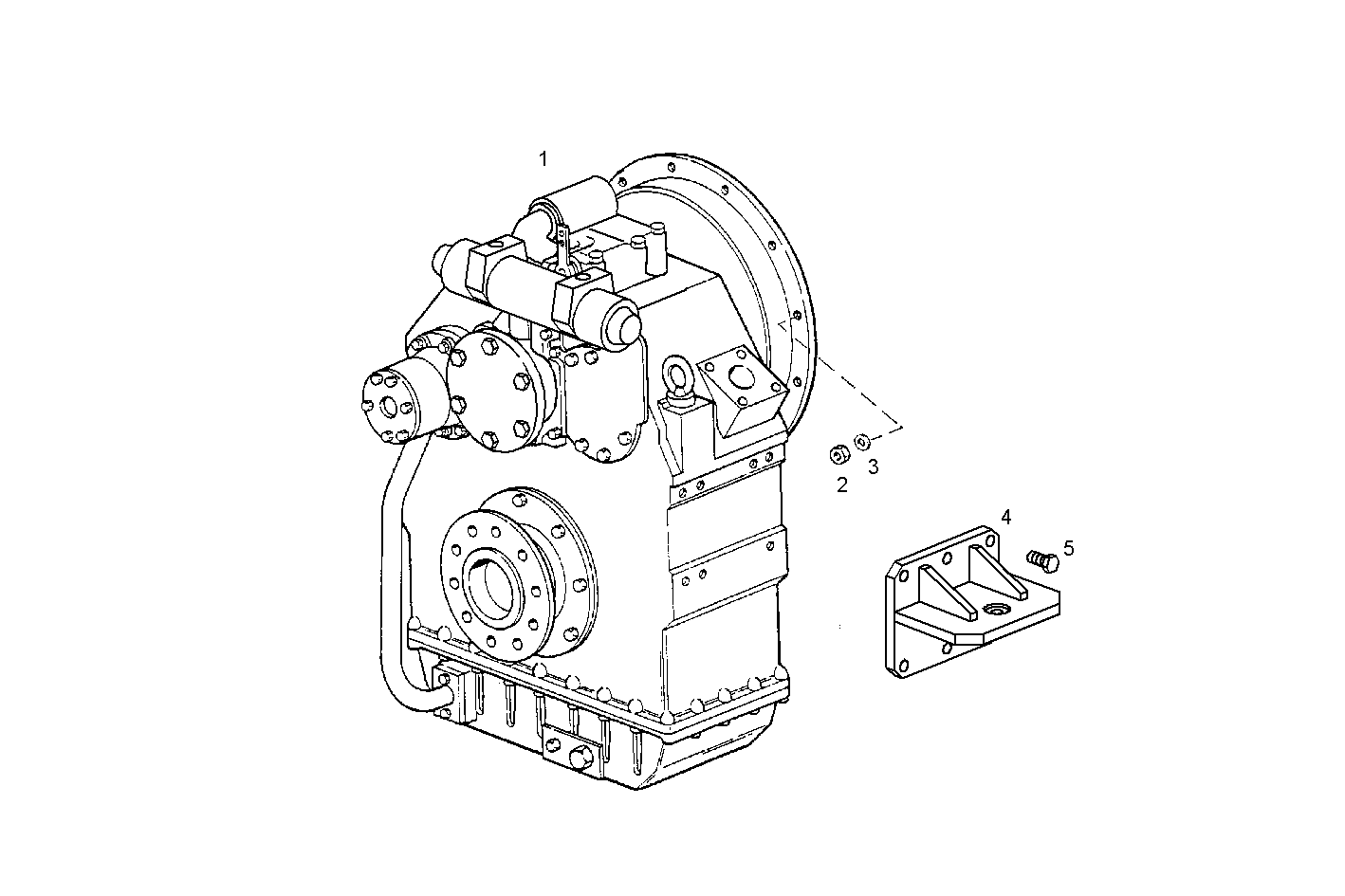

MARINE GEAR
Assembly ID: A51850501-03
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 8041544 | MARINE GEAR | 1 | ||
| 2 | 17038131 | HEXAGON NUT | 12 | ||
| 3 | 17090174 | SPRING WASHER | 12 | ||
| 4 | 8043006 | SUPPORT | 8 | ||
| 5 | 17458134 | SCREW | 8 |
Applies to engines
| Engine | Family | |
|---|---|---|
| C13ENTM77.10 | CURSOR 13 | view |
