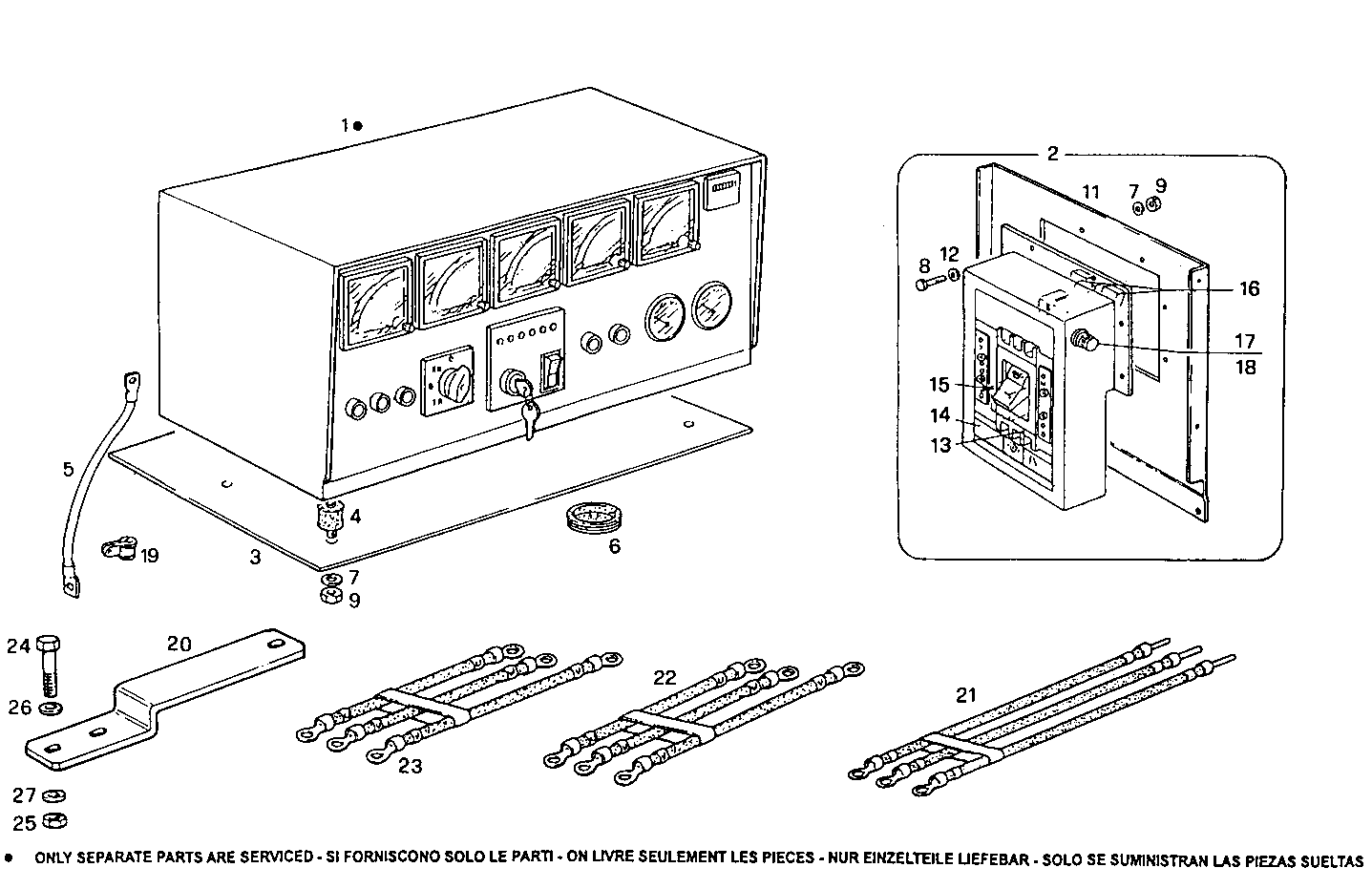

| 1 |
8022361
|
CONTROL BOARD ASSY
|
|
1
|
|
| 2 |
8020591
|
SWITCH
|
|
1
|
|
|
503110722 |
SWITCH |
|
1 |
|
| 3 |
8021674
|
COVER
|
|
1
|
|
| 4 |
8104155
|
DOWEL
|
|
4
|
|
| 5 |
8006993
|
EARTH WIRE
|
|
1
|
|
| 6 |
8113214
|
INSULATING RING
|
|
1
|
|
| 7 |
17088474
|
WASHER
|
|
14
|
|
| 8 |
16603524
|
SCREW
|
|
6
|
|
| 9 |
17037821
|
HEXAGON NUT
|
|
14
|
|
| 11 |
8021676
|
COVER
|
|
1
|
|
| 12 |
17094714
|
WASHER
|
|
6
|
|
| 13 |
8021333
|
SWITCH
|
|
1
|
|
| 14 |
8021327
|
SWITCH
|
|
1
|
|
| 15 |
8021328
|
MINIMUN TENSION COIL
|
|
1
|
|
| 16 |
8090288
|
TRANSFORMATOR
|
|
3
|
|
| 17 |
8105267
|
FUSE BOX
|
|
1
|
|
| 18 |
8105216
|
FUSE
|
|
1
|
|
| 19 |
17314890
|
CLIP
|
|
3
|
|
| 20 |
8025227
|
RETAINER
|
|
1
|
|
| 21 |
8023970
|
WIRE/CABLE
|
|
1
|
|
| 22 |
8110852
|
EARTH WIRE
|
|
1
|
|
| 23 |
8021873
|
WIRE/CABLE
|
|
1
|
|
| 24 |
16609824
|
HEXAGON BOLT
|
|
1
|
|
|
16609825 |
HEXAGON BOLT |
|
1 |
|
| 25 |
17038421
|
HEXAGON NUT
|
|
1
|
|
|
17038425 |
HEXAGON NUT |
|
1 |
|
| 26 |
17091074
|
WASHER
|
|
1
|
|
| 27 |
17095314
|
WASHER
|
|
1
|
|
|
17097324 |
WASHER |
|
1 |
|
