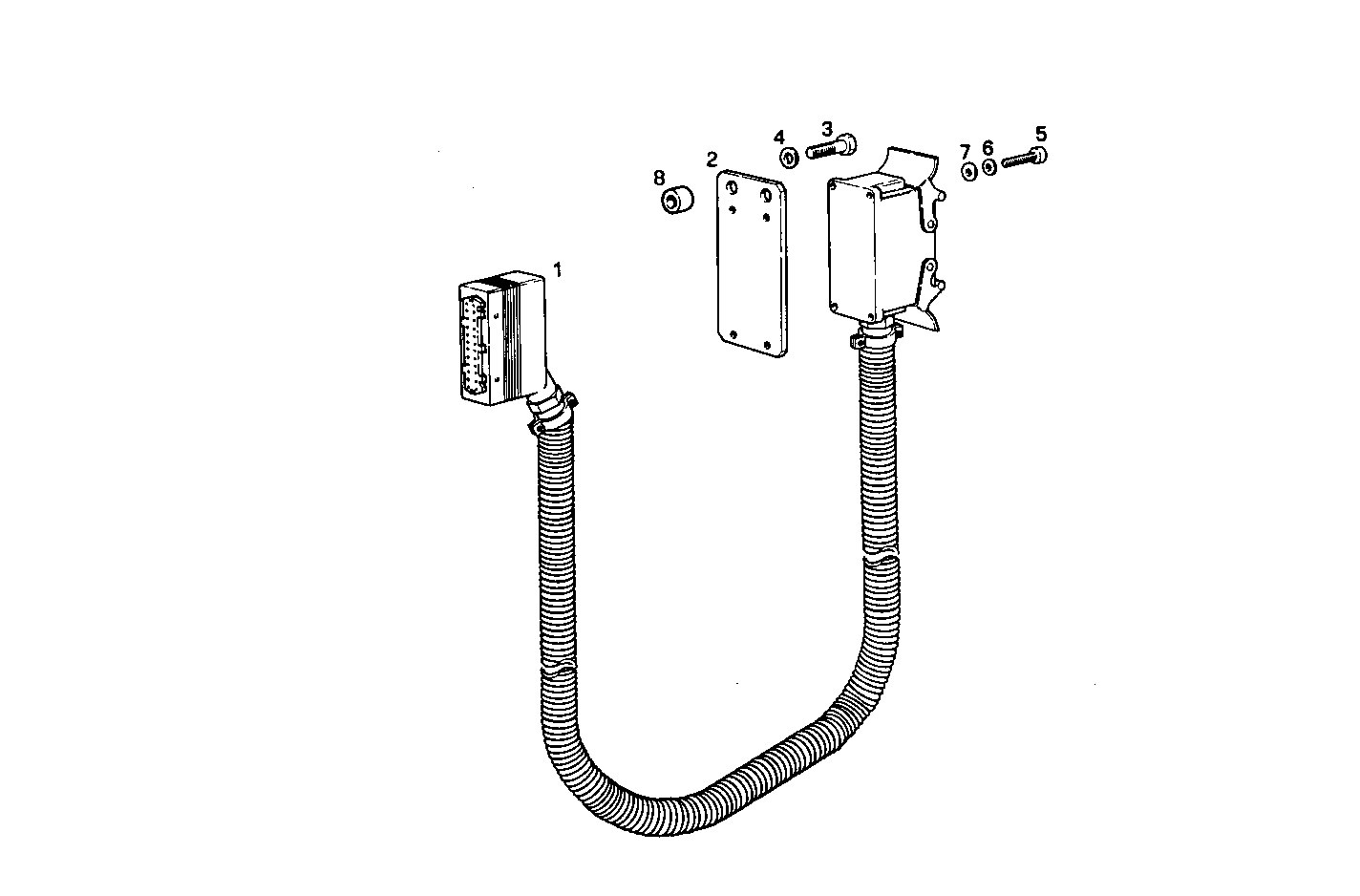

23 CONTACTS CONNECTOR
Assembly ID: A62080017
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 8022510 | EXTENSION | 1 | ||
| 2 | 8009037 | SUPPORT | 1 | ||
| 3 | 15540524 | SCREW | 2 | ||
| 4 | 17091071 | SPRING WASHER | 2 | ||
| 5 | 10389611 | SCREW | 4 | ||
| 6 | 17709971 | WASHER | 4 | ||
| 7 | 17094504 | WASHER | 4 | ||
| 8 | 8112397 | SPACING BAR | 2 |
Applies to engines
| Engine | Family | |
|---|---|---|
| GE8361SRi25.00A70E | GE8361SRi25 | view |
| GE8361SRi25.00A70L | GE8361SRi25 | view |
| GE8361SRi25.00A70S | GE8361SRi25 | view |
| GE8361SRi26.00A70E | GE8361SRi26 | view |
| GE8361SRi26.00A70L | GE8361SRi26 | view |
| GE8361SRi26.00A70S | GE8361SRi26 | view |
| GE8361SRi26.07A955 | GE8361SRi26 | view |
| 8361SRi15.01 | 8361SRi15 | view |
| 8361SRi25.06 | 8361SRi25 | view |
| 8361SRi25.07 | 8361SRi25 | view |
| 8361SRi26.06 | 8361SRi26 | view |
| 8361SRi26.07 | 8361SRi26 | view |
