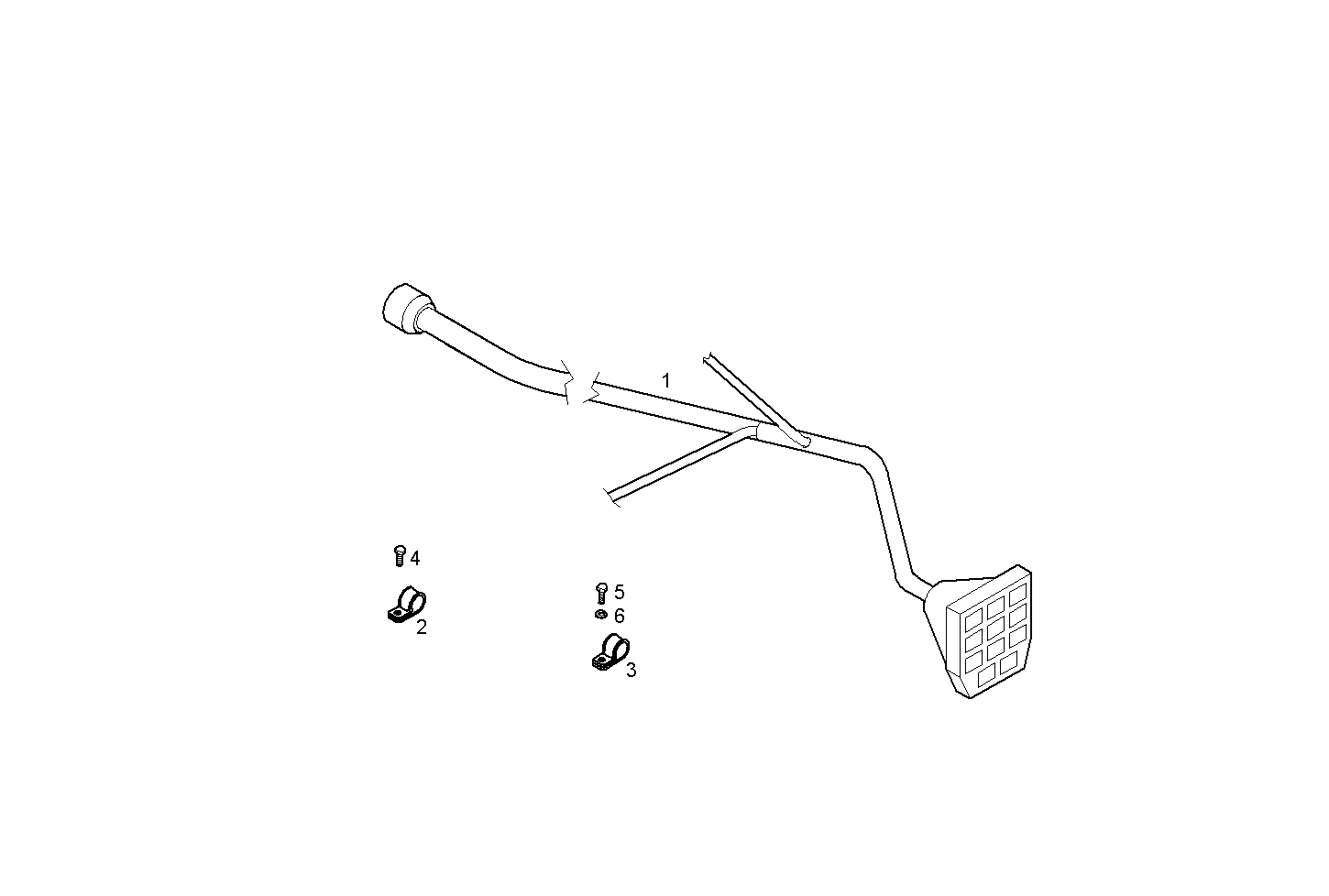

CABLES AND FITTING FOR GENSET
Assembly ID: A62505001
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 503112203 | ENGINE HARNESS | 1 | ||
| 2 | 4936278 | CLIP | 1 | ||
| 3 | 4936279 | CLIP | 1 | ||
| 4 | 18139424 | HEXAGON BOLT | 1 | ||
| 5 | 16605424 | SCREW | 1 | ||
| 6 | 17089774 | SPRING WASHER | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| N67MNTE60.00 | NEF 6 mechanic. - TIER 2 | view |
| N67MNTE61.00 | NEF 6 mechanic. - TIER 2 | view |
| N67MNSI80.00 | NEF 6 mechanic. - TIER 2 | view |
| GENEF125M.R980 | GENEF 6 mechanic. - TIER 2 | view |
| GENEF130M.R980 | GENEF 6 mechanic. - TIER 2 | view |
| GENEF130M.1R980 | GENEF 6 mechanic. - TIER 2 | view |
| NEF67TM1X.R981 | NEF 6 mechanic. - TIER 3 | view |
| GENEF160MA.R980 | GENEF 6 mechanic. - 2002/88/CE | view |
| GENEF130MA.R980 | GENEF 6 mechanic. - 2002/88/CE | view |
