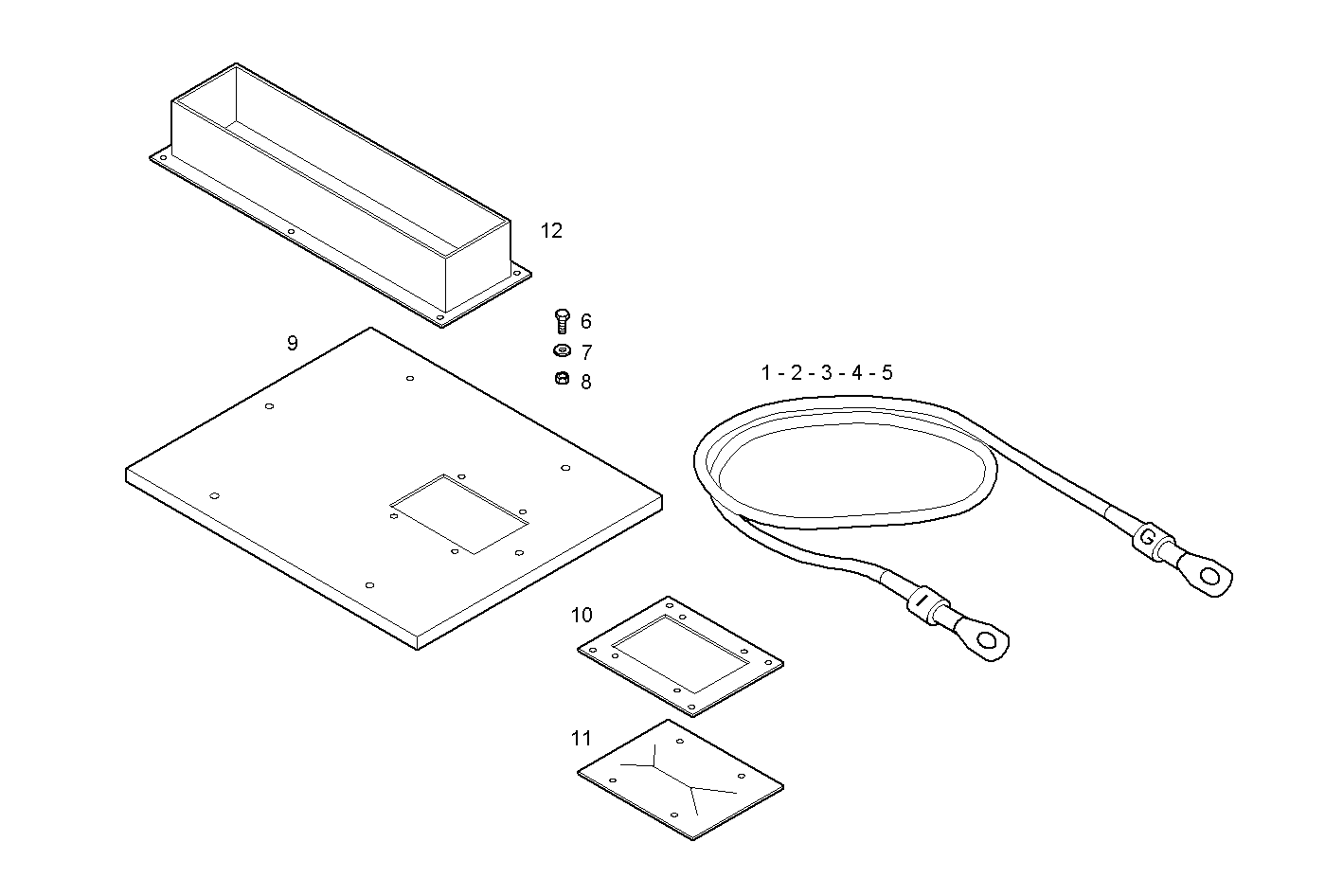

POWER CABLES

Assembly ID: A62705010

POWER CABLES

Parts

# Part number Description Note Quantity
1 503112461 WIRE/CABLE 1
2 503112446 WIRE/CABLE 1
3 503112447 WIRE/CABLE 1
4 503112448 WIRE/CABLE 1
5 503112449 WIRE/CABLE 1
6 16609724 HEXAGON BOLT 4
7 17088474 WASHER 4
8 17037821 HEXAGON NUT 4
9 503112196 EL.MACHINE COVER 1
10 503111035 COVER 1
11 503111036 GROMMET 1
12 503112193 PROTECTION 1

Applies to engines

Engine Family
GECURSOR250E.R990 GECURSOR 8 - TIER 2 view
GECURSOR250E.1R990 GECURSOR 8 - TIER 2 view
C87ENTX60.00 CURSOR 9 - 2002/88/CE - TIER 3 view
GECURSOR250ES.R990 GECURSOR 8 - 2002/88/CE view
GECURSOR270ED.R990 GECURSOR 9 - 2002/88/CE TIER 3 view
GECURSOR250ED.R990 GECURSOR 9 - TIER 3 view
