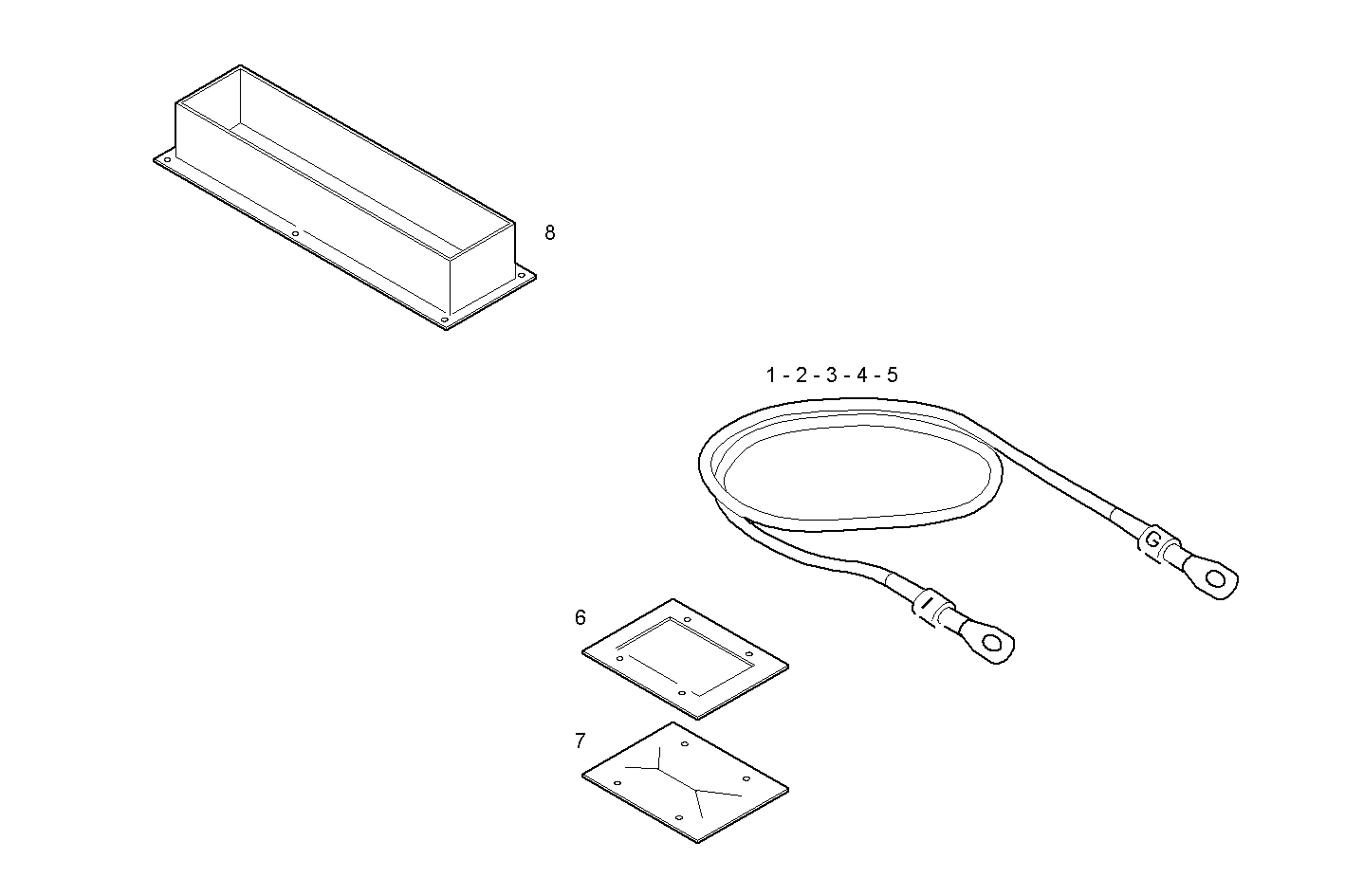

POWER CABLES
Assembly ID: A62735026
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 503112459 | WIRE/CABLE | 1 | ||
| 2 | 503112458 | WIRE/CABLE | 1 | ||
| 3 | 503112457 | WIRE/CABLE | 1 | ||
| 4 | 503112456 | WIRE/CABLE | 1 | ||
| 5 | 503112460 | WIRE/CABLE | 1 | ||
| 6 | 503111035 | COVER | 1 | ||
| 7 | 503111036 | GROMMET | 1 | ||
| 8 | 503114013 | PROTECTION | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| C87ENTX60.00 | CURSOR 9 - 2002/88/CE - TIER 3 | view |
| GECURSOR250ES.R990 | GECURSOR 8 - 2002/88/CE | view |
| GECURSOR270ED.R990 | GECURSOR 9 - 2002/88/CE TIER 3 | view |
| GECURSOR250ED.R990 | GECURSOR 9 - TIER 3 | view |
