SWITCHGEAR
Assembly ID: Q0000138

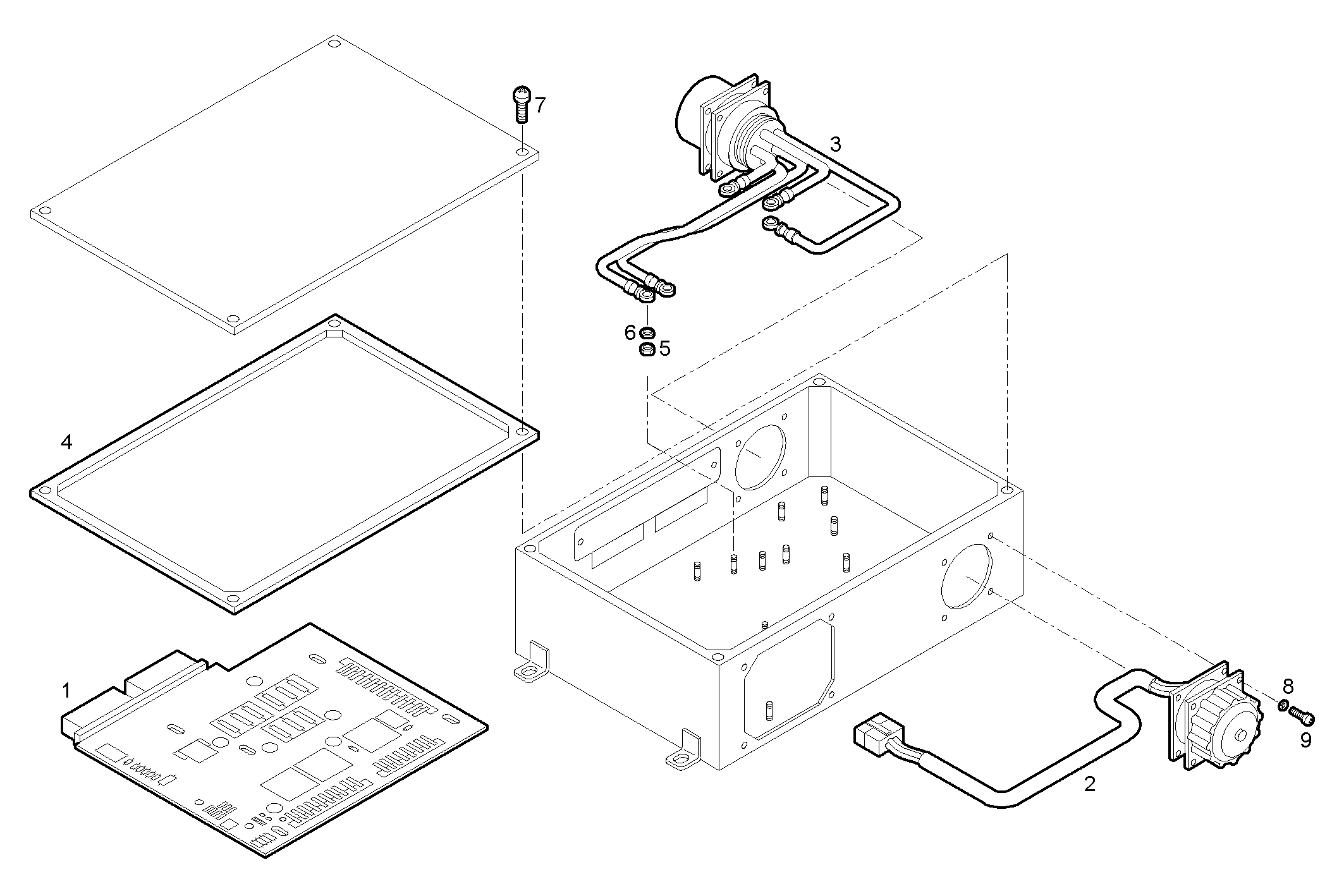

Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 503112594 | ELECTRONIC CARD | 1 | ||
| 2 | 503112504 | WIRE/CABLE | 1 | ||
| 3 | 503112505 | WIRE/CABLE | 1 | ||
| 4 | 503112495 | FLAT ENGINE GASKET | 1 | ||
| 5 | 17037621 | HEXAGON NUT | 10 | ||
| 6 | 10519221 | WASHER | 10 | ||
| 7 | 16924015 | CROSS-SLOT SCREW | 10 | ||
| 8 | 17094104 | WASHER | 4 | ||
| 9 | 17029314 | CROSS-SLOT SCREW | 4 |
Applies to engines
| Engine | Family | |
|---|---|---|
| GECURSOR400ES.R990 | GECURSOR 13 - 2002/88/CE | view |
| GENEF160M.R980 | GENEF 6 mechanic. - TIER 2 | view |
| CURSOR78TE2.A001 | CURSOR 8 - TIER 2 | view |
| CURSOR78TE2.A002 | CURSOR 8 - TIER 2 | view |
| CURSOR78TE2.A850 | CURSOR 8 - TIER 2 | view |
| GECURSOR250E.R990 | GECURSOR 8 - TIER 2 | view |
| GECURSOR400E.R990 | GECURSOR 13 - TIER 2 | view |
| CURSOR13TE3.A003 | CURSOR 13 - TIER 2 | view |
| CURSOR13TE2.A001 | CURSOR 13 - TIER 2 | view |
| CURSOR13TE2.A002 | CURSOR 13 - TIER 2 | view |
| GECURSOR250E.1R990 | GECURSOR 8 - TIER 2 | view |
| CURSOR78TE2.1A001 | CURSOR 8 - TIER 2 | view |
| CURSOR78TE2.1A002 | CURSOR 8 - TIER 2 | view |
| CURSOR13TE3.A001 | CURSOR 13 - TIER 2 | view |
| CURSOR13TE3.A002 | CURSOR 13 - TIER 2 | view |
| CURSOR13TE1.A001 | CURSOR 13 - TIER 2 | view |
| CURSOR13TE1.A002 | CURSOR 13 - TIER 2 | view |
| GECURSOR300E.R990 | GECURSOR 13 - TIER 2 | view |
| GECURSOR350E.R990 | GECURSOR 13 - TIER 2 | view |
| CURSOR13TE1.A003 | CURSOR 13 - TIER 2 | view |
| CURSOR78TE2.1A559 | CURSOR 8 - TIER 2 | view |
| GECURSOR250E.1A551 | GECURSOR 8 - TIER 2 | view |
| GECURSOR250E.1A71M | GECURSOR 8 - TIER 2 | view |
| CURSOR13TE1.A559 | CURSOR 13 - TIER 2 | view |
| GECURSOR300E.A551 | GECURSOR 13 - TIER 2 | view |
| GECURSOR300E.A71M | GECURSOR 13 - TIER 2 | view |
| CURSOR13TE2.A559 | CURSOR 13 - TIER 2 | view |
| GECURSOR350E.A551 | GECURSOR 13 - TIER 2 | view |
| GECURSOR350E.A71M | GECURSOR 13 - TIER 2 | view |
| CURSOR13TE3.A559 | CURSOR 13 - TIER 2 | view |
| GECURSOR400E.A551 | GECURSOR 13 - TIER 2 | view |
| GECURSOR400E.A71M | GECURSOR 13 - TIER 2 | view |
| GECURSOR250ES.R990 | GECURSOR 8 - 2002/88/CE | view |
| GECURSOR350ES.A71M | GECURSOR 13 - 2002/88/CE | view |
| GECURSOR350ES.A551 | GECURSOR 13 - 2002/88/CE | view |
| GECURSOR350ES.A001 | GECURSOR 13 - 2002/88/CE | view |
| CURSOR13TE2S.A559 | CURSOR 13 - 2002/88/CE | view |
| CURSOR13TE2S.A004 | CURSOR 13 - 2002/88/CE | view |
| CURSOR13TE2S.A003 | CURSOR 13 - 2002/88/CE | view |
| CURSOR13TE2S.A002 | CURSOR 13 - 2002/88/CE | view |
| CURSOR13TE2S.A001 | CURSOR 13 - 2002/88/CE | view |
| CURSOR13TE3S.A001 | CURSOR 13 - 2002/88/CE | view |
| GECURSOR250ES.A001 | GECURSOR 8 - 2002/88/CE | view |
| GECURSOR250ES.A551 | GECURSOR 8 - 2002/88/CE | view |
| GECURSOR250ES.A71M | GECURSOR 8 - 2002/88/CE | view |
| CURSOR78TE2S.A001 | CURSOR 8 - 2002/88/CE | view |
| CURSOR78TE2S.A002 | CURSOR 8 - 2002/88/CE | view |
| CURSOR78TE2S.A559 | CURSOR 8 - 2002/88/CE | view |
| GECURSOR300E.A001 | GECURSOR 13 - TIER 2 | view |
| GECURSOR350E.A001 | GECURSOR 13 - TIER 2 | view |
| GECURSOR400E.A001 | GECURSOR 13 - TIER 2 | view |
| CURSOR13TE2.A003 | CURSOR 13 - TIER 2 | view |
| CURSOR13TE3S.A003 | CURSOR 13 - 2002/88/CE | view |
