SWITCHGEAR

Assembly ID: Q0000141

SWITCHGEAR

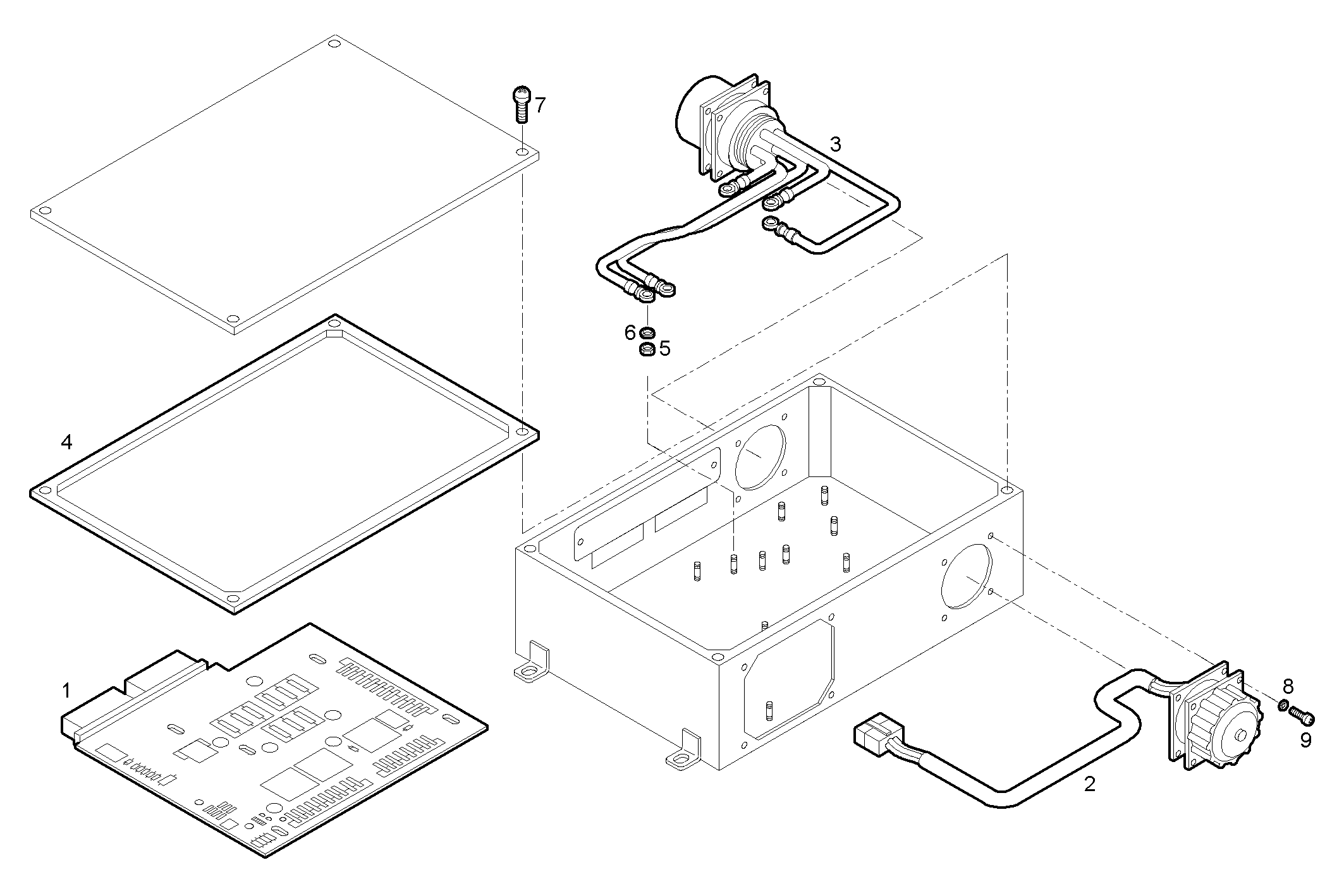

Parts

# Part number Description Note Quantity
1 503115096 ELECTRONIC CARD 1
2 503112504 WIRE/CABLE 1
3 503112505 WIRE/CABLE 1
4 503112495 FLAT ENGINE GASKET 1
5 17037621 HEXAGON NUT 10
6 10519221 WASHER 10
7 16924015 CROSS-SLOT SCREW 10
8 17094104 WASHER 4
9 17029314 CROSS-SLOT SCREW 4

Applies to engines

Engine Family
CURSOR10TE1D.X001 CURSOR 10 - 2002/88/CE TIER 3 view
CURSOR13TE3X.R991 CURSOR 13 - TIER 3 view
CURSOR10TE1D.R991 CURSOR 10 - 2002/88/CE TIER 3 view
GECURSOR300ED.R990 GECURSOR 10 - 2002/88/CE-TIER3 view
C87ENTX60.00 CURSOR 9 - 2002/88/CE - TIER 3 view
CURSOR87TE1D.R991 CURSOR 9 - 2002/88/CE - TIER 3 view
CURSOR87TE1D.A001 CURSOR 9 - 2002/88/CE - TIER 3 view
CURSOR87TE1D.A002 CURSOR 9 - 2002/88/CE - TIER 3 view
GECURSOR270ED.R990 GECURSOR 9 - 2002/88/CE TIER 3 view
CURSOR13TE3A.A001 CURSOR 13 - 2002/88/CE view
CURSOR13TE3A.A002 CURSOR 13 - 2002/88/CE view
CURSOR13TE3A.A003 CURSOR 13 - 2002/88/CE view
CURSOR13TE3A.A559 CURSOR 13 - 2002/88/CE view
CURSOR13TE3A.S550 CURSOR 13 - 2002/88/CE view
GECURSOR400EA.A001 GECURSOR 13 - 2002/88/CE view
GECURSOR400EA.A551 GECURSOR 13 - 2002/88/CE view
GECURSOR400EA.A71M GECURSOR 13 - 2002/88/CE view
GECURSOR400EA.R990 GECURSOR 13 - 2002/88/CE view
CURSOR13TE2A.A001 CURSOR 13 - 2002/88/CE view
CURSOR13TE2A.A002 CURSOR 13 - 2002/88/CE view
CURSOR13TE2A.A003 CURSOR 13 - 2002/88/CE view
CURSOR13TE2A.A004 CURSOR 13 - 2002/88/CE view
CURSOR13TE2A.A559 CURSOR 13 - 2002/88/CE view
CURSOR13TE2A.S550 CURSOR 13 - 2002/88/CE view
GECURSOR350EA.A001 GECURSOR 13 - 2002/88/CE view
GECURSOR350EA.A551 GECURSOR 13 - 2002/88/CE view
GECURSOR350EA.A71M GECURSOR 13 - 2002/88/CE view
GECURSOR350EA.R990 GECURSOR 13 - 2002/88/CE view
CURSOR10TE1D.A559 CURSOR 10 - 2002/88/CE TIER 3 view
CURSOR10TE1D.A001 CURSOR 10 - 2002/88/CE TIER 3 view
CURSOR10TE1D.A008 CURSOR 10 - 2002/88/CE TIER 3 view
CURSOR13TE3X.A008 CURSOR 13 - TIER 3 view
CURSOR13TE3X.A011 CURSOR 13 - TIER 3 view
