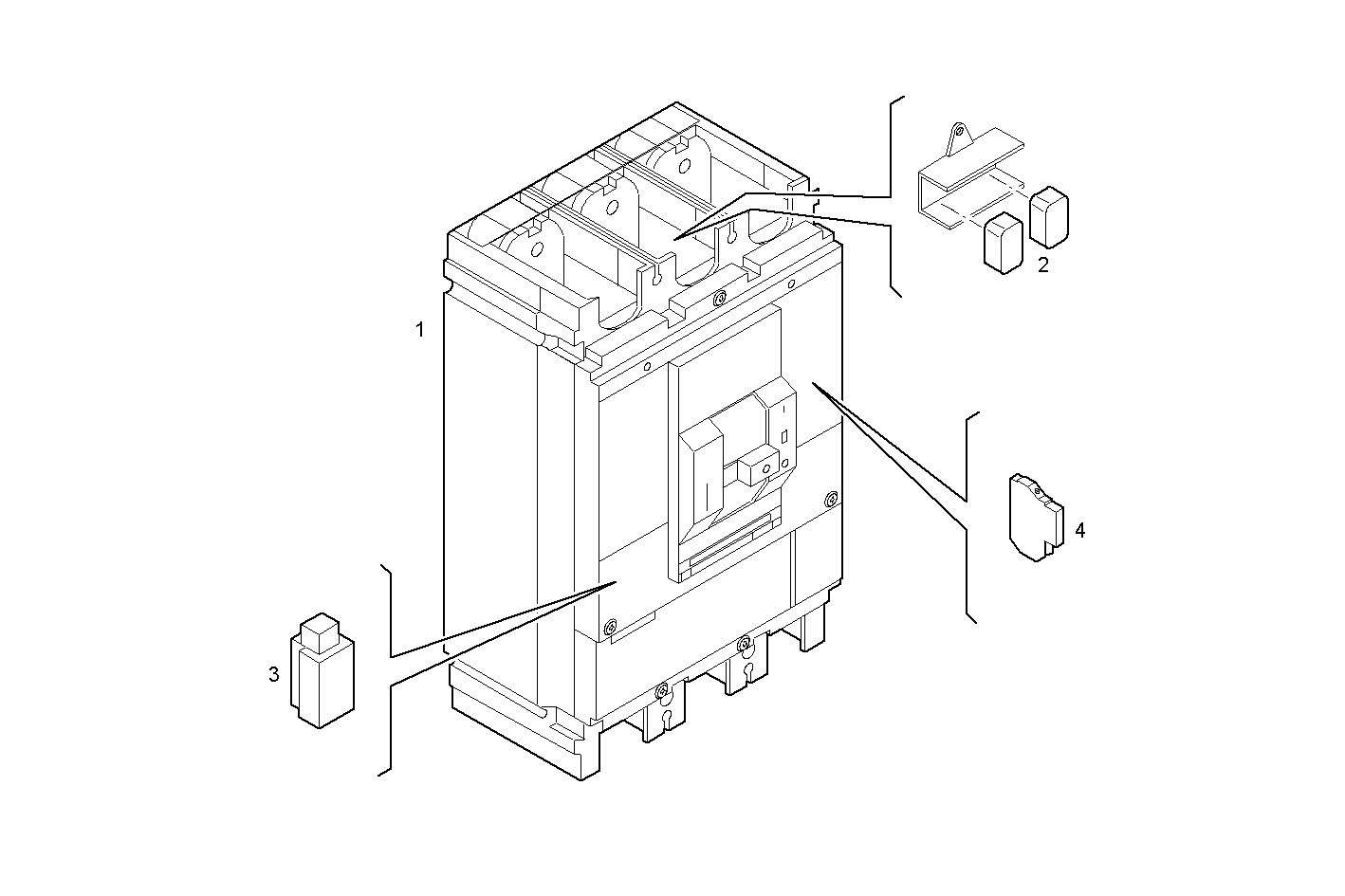

SWITCHGEAR
Assembly ID: Q0000160
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 8095088 | SWITCH | 1 | ||
| 2 | 8095048 | AMMETER TRANSFORMATOR | 3 | ||
| 3 | 8095086 | MINIMUN TENSION COIL | 1 | ||
| 4 | 8095083 | SWITCH | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| GECURSOR400ES.R990 | GECURSOR 13 - 2002/88/CE | view |
| GECURSOR400E.R990 | GECURSOR 13 - TIER 2 | view |
| GECURSOR300ED.R990 | GECURSOR 10 - 2002/88/CE-TIER3 | view |
| GENEF200EA.R990 | GENEF 6 electron. - 2002/88/CE | view |
| GECURSOR400EA.R990 | GECURSOR 13 - 2002/88/CE | view |
| GECURSOR350EA.R990 | GECURSOR 13 - 2002/88/CE | view |
