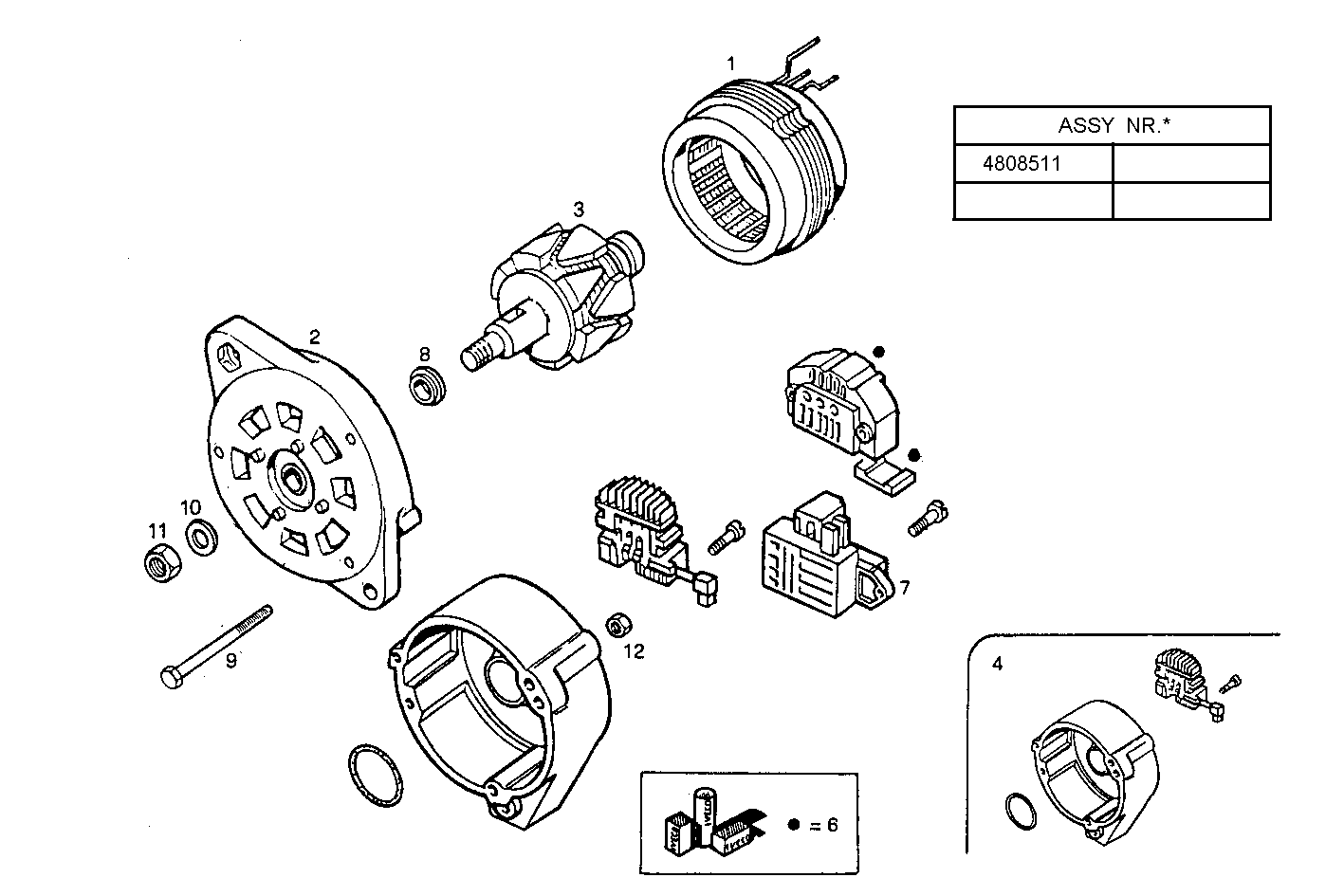

ALTERNATOR

Assembly ID: T1405001

ALTERNATOR

Parts

# Part number Description Note Quantity
1 9940729 STATOR 1
2 9940298 SUPPORT 1
3 9969275 ROTOR 1
4 9940300 SUPPORT 1
5 9940293 RECTIFIER 1
6 79070385 KIT-GENERATOR 1
7 93193292 VOLTAGE REGULATOR 1
8 4479391 SPACING BAR 1
9 11030321 HEXAGON BOLT 3
10 11200171 SPRING WASHER 1
11 12164021 HEXAGON NUT 1
12 14084211 CASTLE NUT 3

Applies to engines

Engine Family
8041C05.05 8041C05 view
8041C05.06 8041C05 view
8141C00.00 8141C00 view
8061i05.00 8061i05 view
8061i25.00 8061i25 view
8061i05.05 8061i05 view
8061i25.05 8061i25 view
8361SRi13.00 8361SRi13 view
8061Si11.05 8061Si11 view
8061Si25.05 8061Si25 view
8061Si35.05 8061Si35 view
8061Si36.05 8061Si36 view
8061SRi10.05 8061SRi10 view
8141i07.01 8141i07 view
8041i05.05 8041i05 view
8041i05.55 8041i05 view
8041Si25.05 8041Si25 view
8041Si25.55 8041Si25 view
8061Si11.06 8061Si11 view
8061Si12.06 8061Si12 view
8361SRi10.01 8361SRi10 view
8141E00.00 8141E00 view
8141i67.01 8141i67 view
8141Si27.02 8141Si27 view
8061Si05.05 8061Si05 view
8045E00.50 8045E00 view
8045E00.00 8045E00 view
8035E00.00 8035E00 view
8065E00.00 8065E00 view
8065SE00.00 8065SE00 view
8065SE00.00A006 8065SE00 view
8065SRE10.00A002 8065SRE10 view
8361SRE10.00 8361SRE10 view
8041i05.00 8041i05 view
8035U00.00 8035U00 view
8045U00.00 8045U00 view
8065U00.00 8065U00 view
8065SU00.00 8065SU00 view
8045U06.55 8045U06 view
8041i06.55 8041i06 view
8041i06.55A520 8041i06 view
8041i06.55A550 8041i06 view
8361SRM38.10 8361SRM38 view
8361SRM38.11 8361SRM38 view
8361SRM40.00 8361SRM40 view
8361SRM40.01 8361SRM40 view
8361SM21.00 8361SM21 view
8361SRM32.00 8361SRM32 view
8361SRM32.40 8361SRM32 view
8361SRM40.10 8361SRM40 view
8361SRM40.40 8361SRM40 view
8065M12.01 8065M12 view
8065M12.21 8065M12 view
8361SM21.01 8361SM21 view
8361SRE10.00A800 8361SRE10 view
8035U00.01A801 8035U00 view
