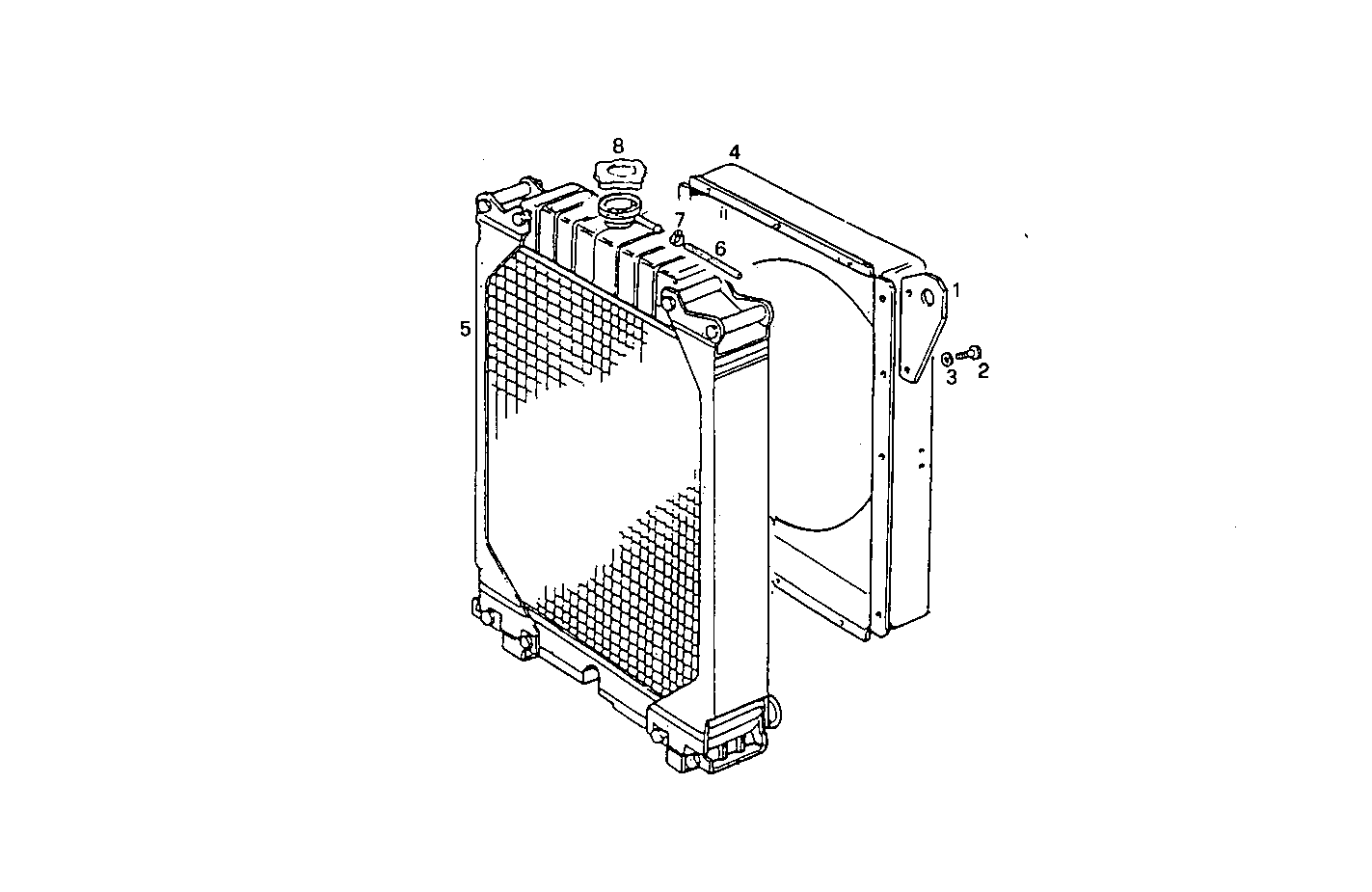

RADIATOR
Assembly ID: T2201006
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 8104792 | PLATE | 1 | ||
| 2 | 10902221 | HEXAGON BOLT | 8 | ||
| 3 | 17088971 | SPRING WASHER | 8 | ||
| 4 | 8009111 | AIR HOOD | 1 | ||
| 5 | 8008818 | WATER RADIATOR | 1 | ||
| 6 | 19053281 | PLASTIC TUBE | 1 | ||
| 7 | 17764296 | CLIP | 1 | ||
| 8 | 53160 | RADIATOR PLUG | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| GE7450i15.05A905 | GE7450i15 | view |
| GE7450i16.05A905 | GE7450i16 | view |
| GE8041i05.55A905 | GE8041i05 | view |
| GE7450G86.05A71E | GE7450G86 | view |
| GE7450G86.05A70E | GE7450G86 | view |
| GS8041i05.55A061 | GS8041i05 | view |
| GS8041i05.55A066 | GS8041i05 | view |
| GS8041i05.55A601 | GS8041i05 | view |
| GS8041i05.55A602 | GS8041i05 | view |
| GS8041i05.55A603 | GS8041i05 | view |
| GS8041i05.55A604 | GS8041i05 | view |
| GS8041i05.55A651 | GS8041i05 | view |
| GS8041i05.55A652 | GS8041i05 | view |
| 8041Si25.05 | 8041Si25 | view |
| 8041Si25.55 | 8041Si25 | view |
| 7450i10.05 | 7450i10 | view |
| 7450i15.05 | 7450i15 | view |
| 7450i16.05 | 7450i16 | view |
| 8041i05.00 | 8041i05 | view |
| 7450E00.00 | 7450E00 | view |
| 7450SE00.00 | 7450SE00 | view |
| 7450U00.00 | 7450U00 | view |
| PU7450i10.05A100 | PU7450i10 | view |
| 7450i10.05A800 | 7450i10 | view |
| 7450i15.05A500 | 7450i15 | view |
| 7450i15.05A520 | 7450i15 | view |
| 7450i16.05A500 | 7450i16 | view |
| 7450i16.05A520 | 7450i16 | view |
| 7450G86.05A502 | 7450G86 | view |
