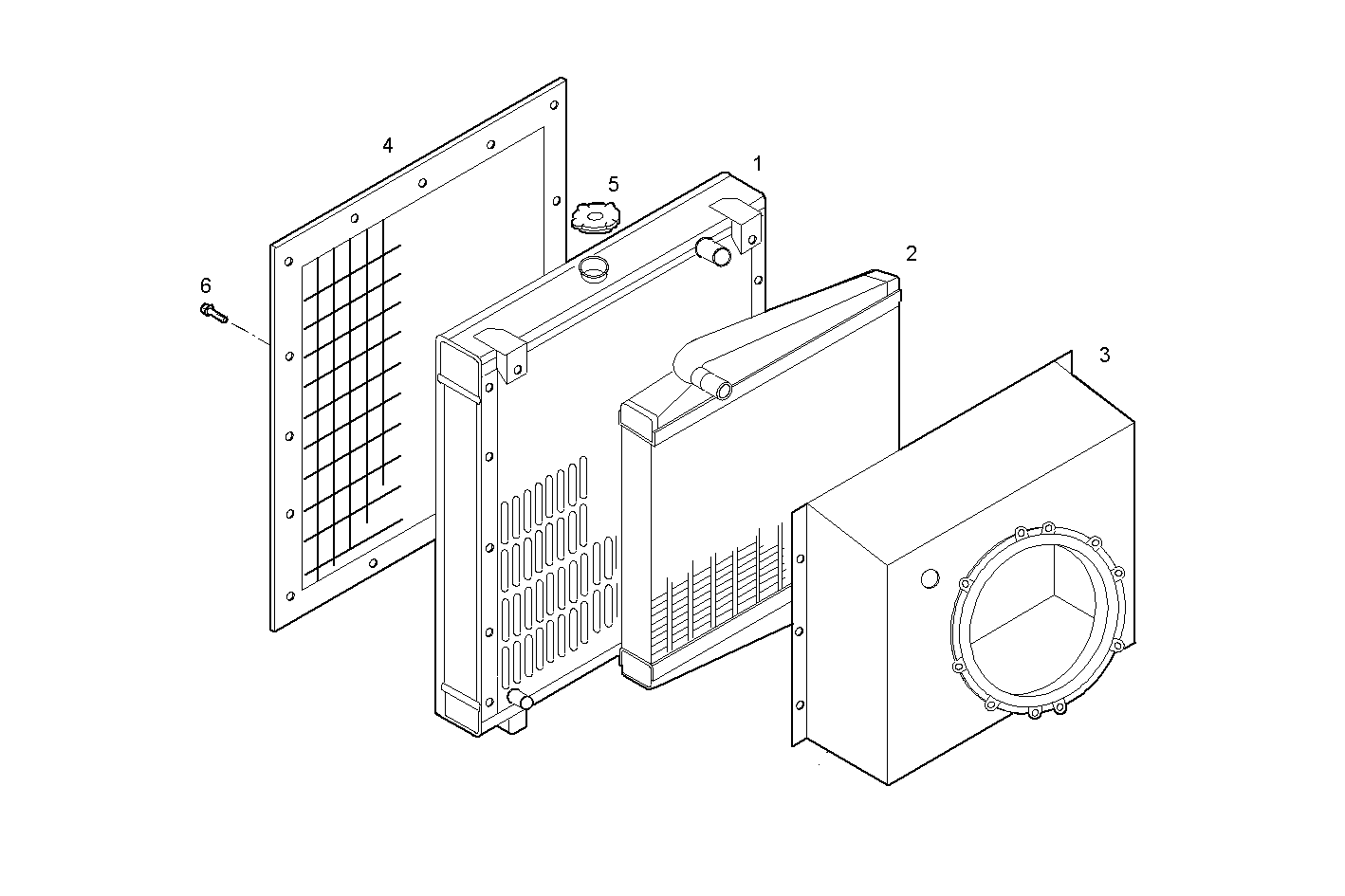

RADIATOR
Assembly ID: T22400501
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 8036040 | WATER RADIATOR | 1 | ||
| 2 | 8036066 | INTERCOOLER | 1 | ||
| 3 | 8036132 | AIR HOOD | 1 | ||
| 4 | 8036309 | PROTECTION | 1 | ||
| 5 | 8107632 | RADIATOR PLUG | 1 | ||
| 6 | 16673635 | HEXAGON BOLT | 26 |
Applies to engines
| Engine | Family | |
|---|---|---|
| C78ENTD20.00 | CURSOR 8 - TIER 2 | view |
| C10ENTD20.00 | CURSOR 10 - TIER 2 | view |
| C78ENTE20.00 | CURSOR 8 - TIER 2 | view |
| C10ENTD20.00A800 | CURSOR 10 - TIER 2 | view |
| C78ENTD20.00A800 | CURSOR 8 - TIER 2 | view |
| C10ENTX20.00 | CURSOR 10 - TIER 3 | view |
| C10ENTX20.00A800 | CURSOR 10 - TIER 3 | view |
| C10ENTX20.00A801 | CURSOR 10 - TIER 3 | view |
| C87ENTX20.00 | CURSOR 9 - TIER 3 | view |
| C87ENTX20.00A800 | CURSOR 9 - TIER 3 | view |
| C87ENTX20.00A801 | CURSOR 9 - TIER 3 | view |
| C87ENTX20.00A802 | CURSOR 9 - TIER 3 | view |
| C10ENTX20.00A802 | CURSOR 10 - TIER 3 | view |
| C87ENTX20.00A803 | CURSOR 9 - TIER 3 | view |
| C10ENTD20.20 | CURSOR 10 - TIER 2 | view |
