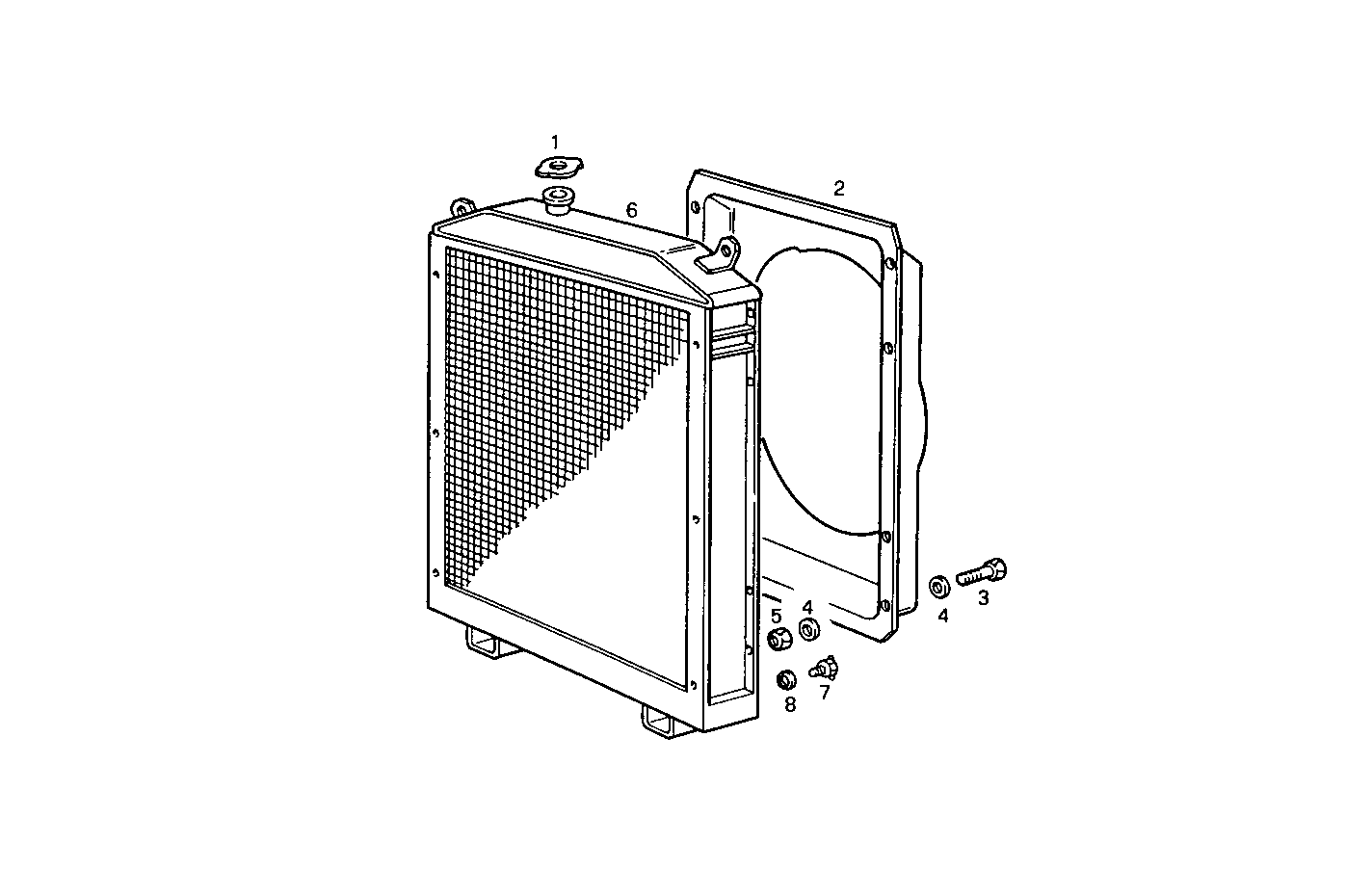

RADIATOR

Assembly ID: T2241001

RADIATOR

Parts

# Part number Description Note Quantity
1 8108697 PLUG 1
2 8102967 AIR HOOD 1
3 10902221 HEXAGON BOLT 8
4 11197771 SPRING WASHER 16
5 15896211 HEXAGON NUT 8
6 T2241001-006 WATER RADIATOR 1
7 T2241001-007 DRAIN COCK 3
8 T2241001-008 GASKET 1

Applies to engines

Engine Family
8361Si11.05 8361Si11 view
8210i03.00 8210i03 view
PU8210i03.00A103 PU8210i03 view
8210i03.00A500 8210i03 view
8210i03.00A520 8210i03 view
8210i03.00A550 8210i03 view
8210i03.00A580 8210i03 view
PU8210I03.00A106 PU8210i03 view
PU8210I03.00A100 PU8210i03 view
