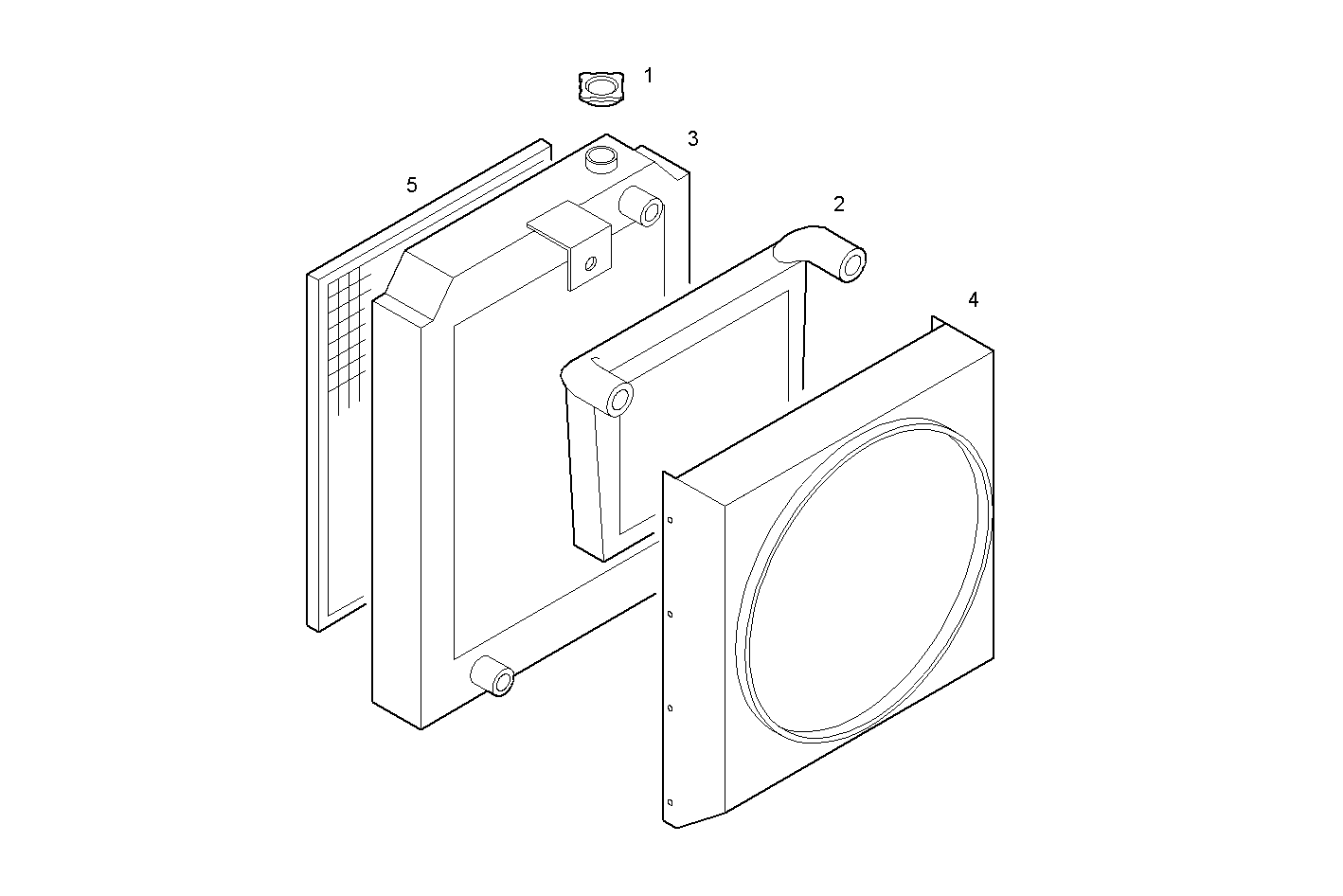

RADIATOR 2 CIRCUITS AIR/WATER (COMPONETS )
Assembly ID: T22410504-01
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 8038171 | RADIATOR PLUG | 1 | ||
| 2 | 8038169 | INTERCOOLER | 1 | ||
| 3 | 8042937 | WATER RADIATOR | 1 | ||
| 4 | 8038170 | AIR HOOD | 1 | ||
| 5 | 8038172 | PROTECTION | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| N60ENTD20.00A800 | NEF 6 electron. - TIER 2 | view |
| N60ENTD20.00A801 | NEF 6 electron. - TIER 2 | view |
| N67MNTD20.00A007 | NEF 6 mechanic. - TIER 2 | view |
| N60ENTD20.00A802 | NEF 6 electron. - TIER 2 | view |
