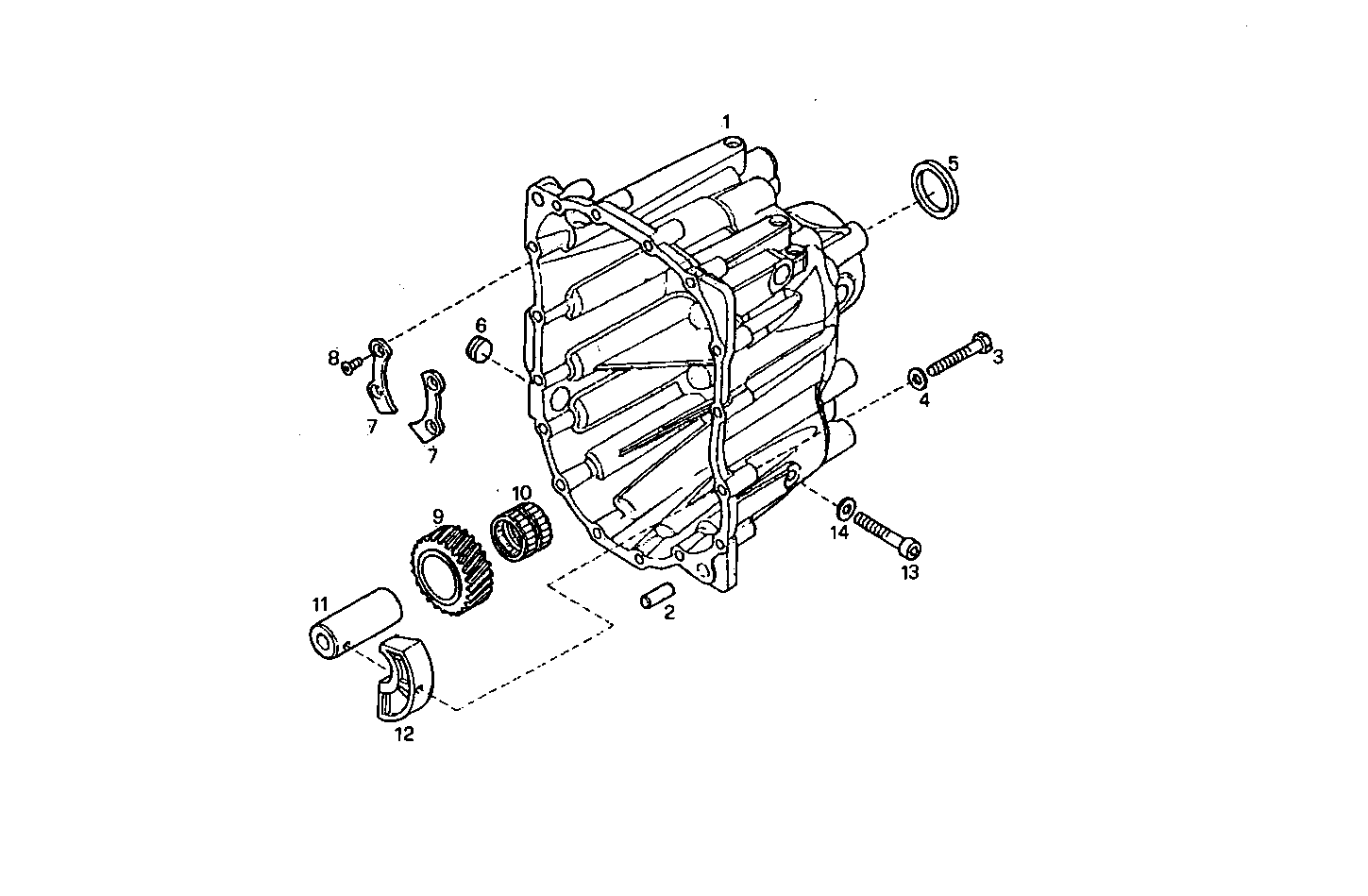

| 1 |
42534938
|
TRANSMISSION CASE
|
|
1
|
|
| 2 |
42534939
|
DOWEL PIN
|
|
2
|
|
|
42535515 |
DOWEL PIN |
|
2 |
|
| 3 |
42534940
|
HEXAGON BOLT
|
|
16
|
|
| 4 |
42491302
|
WASHER
|
|
16
|
|
| 5 |
93158332
|
WASHER
|
|
1
|
|
| 6 |
42534941
|
THREADED PLUG
|
|
1
|
|
| 7 |
42534937
|
LOCKING PLATE
|
|
2
|
|
| 8 |
42534934
|
SCREW
|
|
4
|
|
|
8873208 |
SCREW |
|
4 |
|
| 9 |
42534942
|
REVERSE GEAR
|
|
1
|
|
| 10 |
42534943
|
ROLLER CAGE
|
|
1
|
|
| 11 |
42534944
|
RETURN SHAFT
|
|
1
|
|
| 12 |
42534945
|
SUPPORT
|
|
1
|
|
|
8869617 |
SUPPORT |
|
1 |
|
| 13 |
93193271
|
CYLIND-HEAD SCREW
|
|
1
|
|
| 14 |
8868623
|
WASHER
|
|
1
|
|
