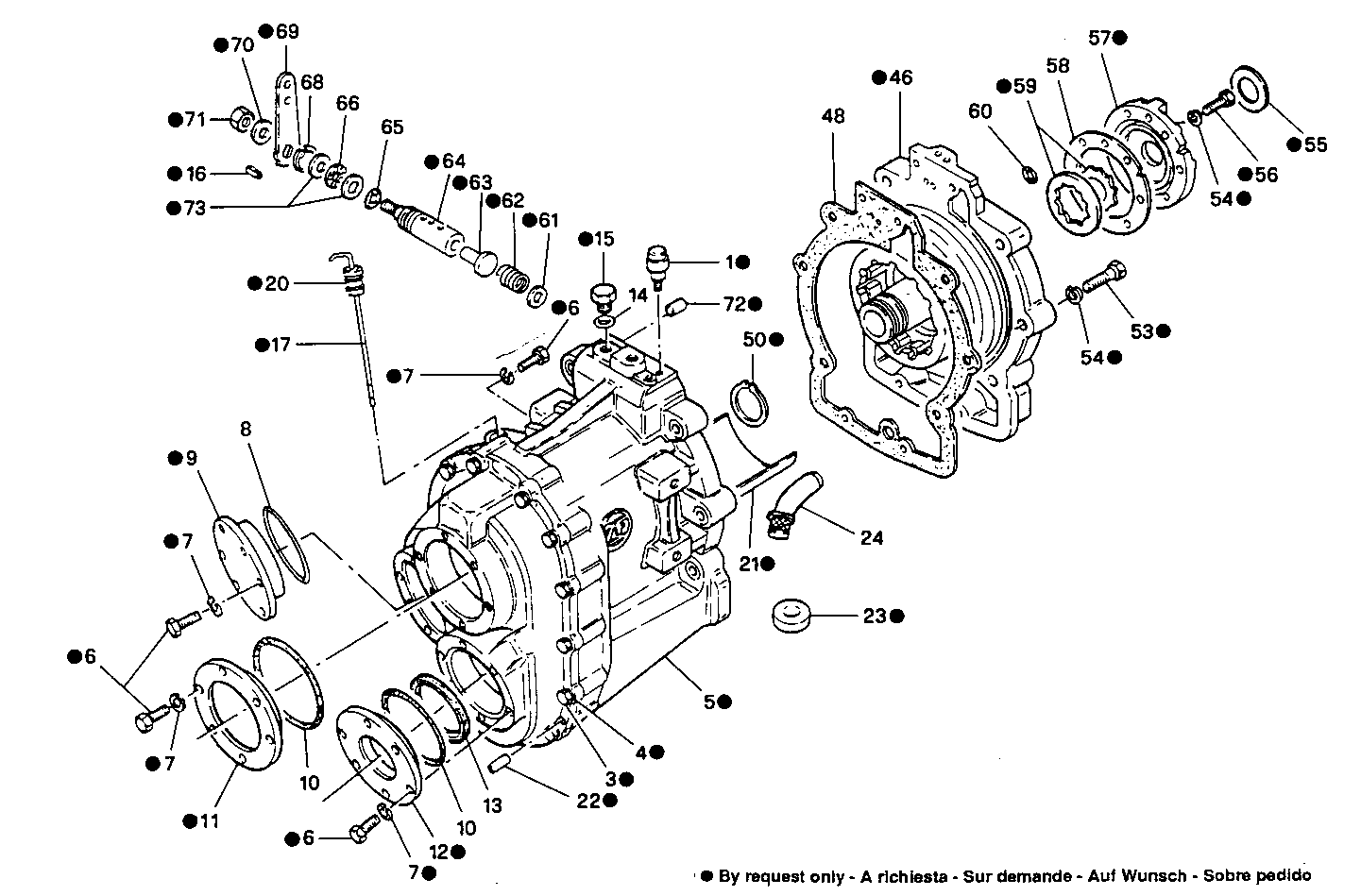

MARINE GEAR

Parts

#	Part number	Description	Quantity
1	T5174001-01-001	BREATHER	1
3	T5174001-01-003	SCREW	15
4	T5174001-01-004	WASHER	15
5	T5174001-01-005	HOUSING	1
6	T5174001-01-006	SCREW	18
7	T5174001-01-007	WASHER	18
8	8091971	O-RING	1
9	T5174001-01-009	COVER	1
10	8091972	O-RING	2
11	T5174001-01-011	COVER	1
12	T5174001-01-012	COVER	1
13	8091973	GASKET	1
14	8091974	O-RING	1
15	T5174001-01-015	PLUG	1
16	T5174001-01-016	PIN	2
17	T5174001-01-017	LABEL	1
20	T5174001-01-020	ROD	1
21	T5174001-01-021	PROTECTION	1
22	T5174001-01-022	PIN	2
23	T5174001-01-023	MAGNETO	1
24	8092110	STRAINER	1
46	T5174001-01-046	COVER	1
48	8091987	O-RING	1
50	T5174001-01-050	RING	1
53	T5174001-01-053	SCREW	4
54	T5174001-01-054	WASHER	4
55	T5174001-01-055	GASKET	1
56	T5174001-01-056	SCREW	6
57	T5174001-01-057	HOUSING	1
58	8091988	GASKET	1
59	T5174001-01-059	RING	1
60	8091989	GASKET	2
61	T5174001-01-061	SHIM	4
62	T5174001-01-062	SPRING	1
63	T5174001-01-063	VALVE	1
64	T5174001-01-064	VALVE	1
65	8091990	O-RING	1
66	8091991	DRIVE BEARING	1
68	8091992	CIRCLIP	1
69	T5174001-01-069	LEVER	1
70	T5174001-01-070	WASHER	1
71	T5174001-01-071	NUT	1
72	T5174001-01-072	SCREW	1
73	T5174001-01-073	WASHER	2

Engine	Family
8061SRM24.00	8061SRM24	view
8061SRM24.10	8061SRM24	view
